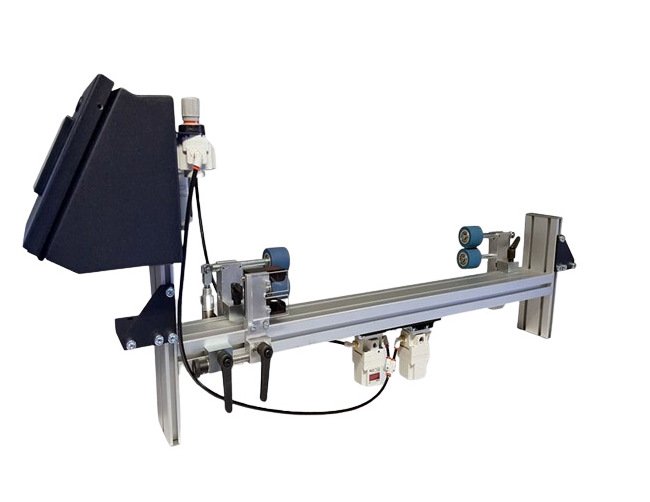

New Intermediate Web Process Guiding System with Built-In Web Spreader CapabilitiesThe web tracking guide allows for flattening of any film while providing an edge guiding function to steer the film using ultrasonic edge sensor detection and proportional electronic valving.
Product Specifications
Additional Information

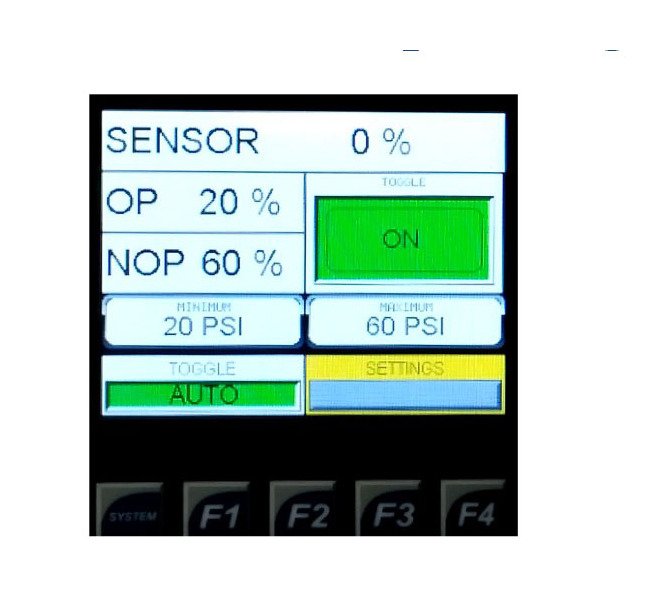

Perfect for film processing that needs intermediate guiding or web spreading including:Pouch making machinesBag making machinesExtrusion linesLaminatingRewindingPrintingCan Be Customized to Fit Any Application!Adjustable position pressure rollers for virtually any web widthDesigned to fit in prior to any nip in-feedFine adjust sensor positionsOur web tracking guide allows for flattening of any film, while providing an edge guiding function. This system basically steers the film, using ultrasonic edge sensor detection and a proportional electronic valve.This system can be easily customized to fit any application.Set-up is made easy with the high resolution color graphics display with both functional buttons and a touchscreen with a simple design.
Note
Made in The USA
Technical Specs Air Pressure
80 psi | 0.5 scfm
Technical Specs Alternative Current Ac Voltage
110 V | 220 V
Technical Specs Maximum Web Width
Designed to your specifications

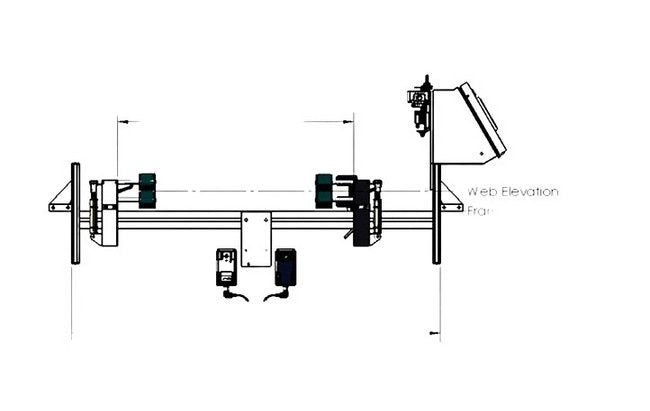

Technical Specs Web Height
7 in. Above to 3.1 in. Below Frame Rail
