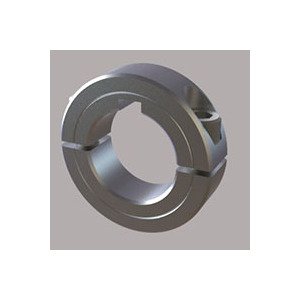

Weldable Shaft Collars with Keyways, 1018 Steel
Weldable Shaft Collars with Keyways, 1018 Steel
SKU:ROU-7eb98f
Enhance shaft safety with 1018 steel Weldable Shaft Collars. Precision machined for superior clamping power.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Weldable Shaft Collars with Keyways, 1018 Steel
$24.99
Quantity: 1
Claim Your Seller Account
Weldable Shaft Collars with Keyways, 1018 Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Two-Piece Split Weldable Shaft Collars with Keyways are expertly crafted from 1018 steel, providing ease and safety during welding operations. Designed for precise positioning on shafts, these collars offer superior clamping power over traditional set-screw collars. With a smooth bore to prevent shaft damage, these collars are versatile to use on standard round shafts, thin-wall tubes, or split hubs. Precision machined and lead-free, these collars are adjustable, non-marring, and feature keyways for added security.
Product Specifications
Dimensional Attributes Bore Size
7/8 in
Dimensional Attributes Keyway
3/16 in
Dimensional Attributes Outside Diameter
1.625 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
1018
Specifications Approximate Weight
0.14 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
8MW014K
Specifications Reach Compliant
Yes
Specifications Rohs Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786042348
