Weldable Shaft Collars with Keyways
Weldable Shaft Collars with Keyways
SKU:FLA-7eb98f
High holding power Weldable Shaft Collars with Keyways. Crafted from lead-free 1018 steel ideal for welding. Precision machined for easy adjustment. Superior alternative to set-screw collars.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Weldable Shaft Collars with Keyways
$12.99
Quantity: 1
Claim Your Seller Account
Weldable Shaft Collars with Keyways
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

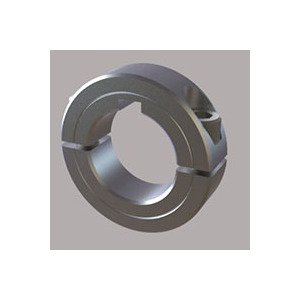

Our Two-Piece Split Weldable Shaft Collars with Keyways are crafted from lead-free 1018 steel, ensuring ease and safety during welding. These collars can be positioned anywhere on a shaft, offering superior holding power over set-screw variants. Precision machined with a smooth bore to shield shafts from damage, these collars are perfect for standard round shafts, thin wall tubes, or split hubs. Non-marring, adjustable, and boasting high clamping power, they are available in a low-profile design with a black oxide finish.
Product Specifications
Dimensional Attributes Bore Size
7/8 in
Dimensional Attributes Keyway
3/16 in
Dimensional Attributes Outside Diameter
1.625 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
1018
Specifications Approximate Weight
0.14 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
8MW014K
Specifications Reach Compliant
Yes
Specifications Rohs Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786042348
