Weldable Two-Piece Split Shaft Collars with Keyways
Weldable Two-Piece Split Shaft Collars with Keyways
SKU:ROU-e2f8ec
Precision-engineered weldable shaft collars for superior holding power and easy adjustment on a variety of shaft types. RoHS and REACH compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Weldable Two-Piece Split Shaft Collars with Keyways
$24.99
Quantity: 1
Claim Your Seller Account
Weldable Two-Piece Split Shaft Collars with Keyways
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

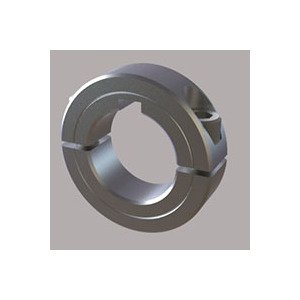

The Weldable Two-Piece Split Shaft Collars with Keyways are expertly crafted from 1018 steel, ensuring welding ease and safety. These collars offer superior holding power compared to set-screw types, with a smooth bore that protects shafts from damage. Precision machined for non-marring installation on standard round shafts, hard or soft, as well as thin-walled tubes or split hubs. This low-profile collar can be disassembled and adjusted effortlessly. Available with a 5/16 inch keyway, these collars are RoHS and REACH compliant, making them ideal for various applications.
Product Specifications
Dimensional Attributes Bore Size
1-3/8 in
Dimensional Attributes Keyway
5/16 in
Dimensional Attributes Outside Diameter
2.250 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.563 in
Specifications Alloy
1018
Specifications Approximate Weight
0.32 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
8MW106K
Specifications Reach Compliant
Yes
Specifications Rohs Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786042386
