Wexxar Bel 200 Series Tray Formers
Wexxar Bel 200 Series Tray Formers
SKU:PAC-5fa29a
Efficient Wexxar Bel 200 Series Tray Formers for fast and reliable tray forming in agricultural and food industries.
Regular price
$32,999.00
Regular price
Sale price
$32,999.00
Unit price
per
Initiate Order
Wexxar Bel 200 Series Tray Formers
$32,999.00
Quantity: 1
Claim Your Seller Account
Wexxar Bel 200 Series Tray Formers
$32,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

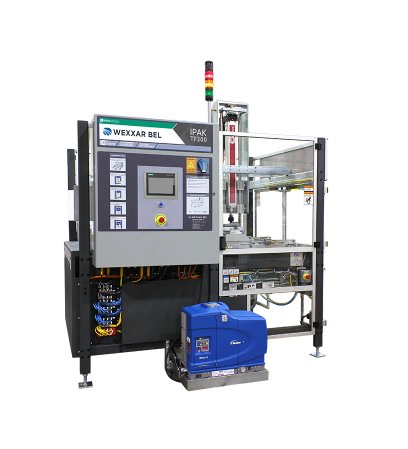

The Wexxar Bel 200 Series automatic tray formers from IPAK offer a versatile solution for forming a wide range of tray styles ideal for agricultural, food processing, and distribution applications. Operating at speeds of up to 40 trays per minute, these machines feature precision servo-driven blank advance, quick size changeovers, and a venturi-style vacuum system for reliability. With Wexxar's WISE smart touchscreen controls system and advanced safety features, these tray formers ensure easy operation, maintenance, and enhanced workplace safety. Designed and built in North America with premium materials, the Wexxar Bel 200 Series Tray Formers guarantee efficiency and durability.
Product Specifications
Electrical Requirements Alternating Current Ac Voltage
460 V | 480 V
Electrical Requirements Frequency
60 Hz
Electrical Requirements Phase
1
Features Features
S-Drive - precision servo driven blank advance & mandrel.Quick size changeovers - with color coded handles and scribed parts, changeovers occur in under 10 minutes (depending on tray style).Venturi style vacuum system - low maintenance and reliable operation with controlled & self cleaning vacuum cups.Wexxar's WISE smart touchscreen controls system - allows for easy machine operation, troubleshooting and maintenance.Advanced safety - including fully interlocked guard doors and emergency stops on both sides of the machine.Easy load hopper for continuous machine operation.On demand tray forming with remote demand sensor.Nordson ProBlue premium hot melt systems.Designed and built in North America with premium materials.
Options Options
Category 3 Safety Circuits | Custom Electrics Options | Dual Head Forming | Infeed and Outfeed Conveyors | Machine Monitoring System with Tri-stack Light and Audible Alarm | Nordson Glue System Upgrades | PF Prefeeder Blank Feed System | Spare Parts Kits
Specifications Frame Construction
Corrosion Resistant and Paint Free
Specifications Machine Footprint
Multiple Frame Configurations
Specifications Machine Weight
2800 lb | 1270 kg
Specifications Speed
Up to 40 trays/min
Specifications Air Consumpation
1.0 ft³/cycle
Specifications Air Pressure
90 psi

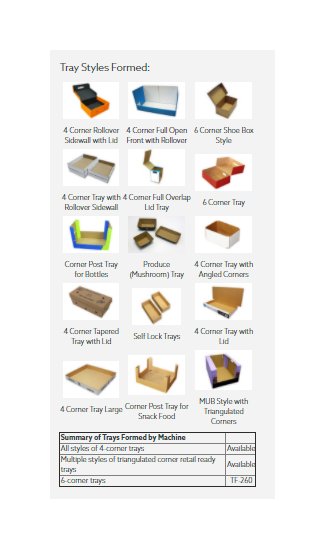

Tray Styles Formed Tray Styles Formed
4 Corner Full Open Front with Rollover | 4 Corner Full Overlap Lid Tray | 4 Corner Rollover Sidewall with Lid | 4 Corner Tapered Tray with Lid | 4 Corner Tray Large | 4 Corner Tray with Angled Corners | 4 Corner Tray with Lid | 4 Corner Tray with Rollover Sidewall | Corner Post Tray for Bottles | Corner Post Tray for Snack Food | MUB Style with Triangulated Corners | Produce (Mushroom) Tray | Self Lock Trays
