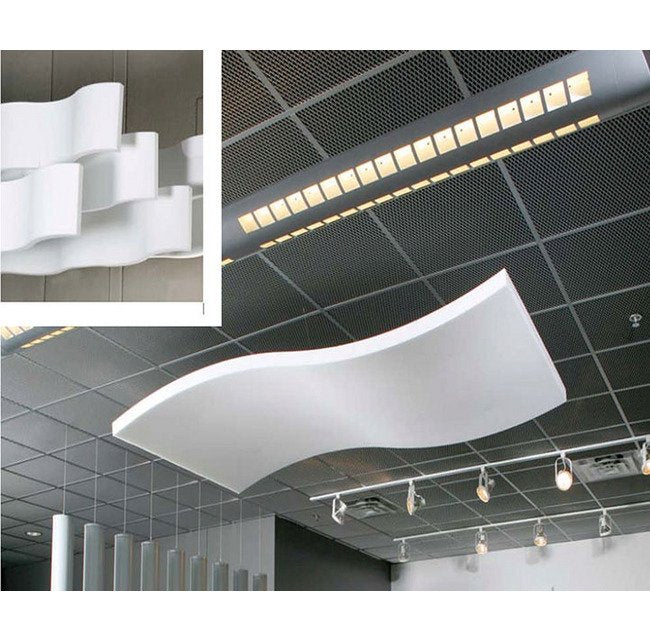

WHISPERWAVE™ Panels, Ceiling Clouds and Awnings provide exceptional acoustical control and design flexibility. Lightweight and easy to install, WHISPERWAVE™ products are ideal for use in classrooms, cafeterias, multipurpose rooms, indoor swimming pools, offices, libraries, religious facilities and other large open areas.
Product Specifications
Advantages
Standard and custom wave designsExceptional acoustical control across all frequenciesOffered in panel, baffle, ceiling cloud and awning optionsEasy installationClass 1 fire-rated
Applications
Cafeterias | Classrooms | Indoor Swimming Pools | Libraries | Multipurpose Rooms | Offices | Other Large Open Areas | Religious Facilities
Installation
Mounts to ceilings or walls using acoustic adhesive
Note
Ceiling-mounted cable installation
Physical Data Willtec Density
0.5 to 0.7 lb/ft³
Physical Data Willtec Fire Resistance
Class 1 per ASTM E 84 (all finishes) | Meets UL 1715 (Willtec® natural)
Physical Data Willtec Flame Spread Per Astm E 84
Natural : 5 | Painted : 10 | Hypalon®-coated : 25
Physical Data Willtec Fungus Resistance
Rating No. 0 per ASTM G21
Physical Data Willtec Long Term Service Temperature
302 ºF
Physical Data Willtec Material
Open-cell melamine-based foamWHISPERWAVE™ is made from willtec® foam, which is Class 1 fire-rated for flame spread and smoke density. willtec® natural also meets the corner burn test UL 1715. WHISPERWAVE™ is offered in natural white and gray and can be painted or Hypalon®-coated.
Physical Data Willtec Microbial Growth
Passes UL 181, Section 11
Physical Data Willtec Note For Panel Size
Custom panel sizes availableCan be joined for long ribbon appearance
Physical Data Willtec Panel Size
24 x 48 in
Physical Data Willtec Smoke Density Per Astm E 84
Natural : 50 | Painted : 10 | Hypalon®-coated : 65
Physical Data Willtec Toxicity
Passes University of Pittsburgh Toxicity of Smoke Emission test
Sound Absorption Finishes
Natural Gray | Natural White
Sound Absorption Noise Reduction Coefficient Nrc Per Astm C423 9
0.85
Sound Absorption Sound Absorption Coefficient 125 Hertz Hz Frequ
0.11
Sound Absorption Sound Absorption Coefficient 1 Kilohertz Hz Fre
1.05
Sound Absorption Sound Absorption Coefficient 250 Hertz Hz Frequ
0.33
Sound Absorption Sound Absorption Coefficient 2 Kilohertz Hz Fre
1.09
Sound Absorption Sound Absorption Coefficient 4 Kilohertz Hz Fre
1.06
Sound Absorption Sound Absorption Coefficient 500 Hertz Hz Frequ
0.85
Sound Absorption Thickness
2 in
