White Beaded Silica Gel Desiccant 0.5-1.0mm
White Beaded Silica Gel Desiccant 0.5-1.0mm
SKU:CHE-2c322d
Versatile White Beaded Silica Gel Desiccant for efficient moisture absorption in air & gas drying applications. Meets MIL-D-3716 Type I standards.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
White Beaded Silica Gel Desiccant 0.5-1.0mm
$69.99
Quantity: 1
Claim Your Seller Account
White Beaded Silica Gel Desiccant 0.5-1.0mm
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The White Beaded Silica Gel Desiccant, with a particle size of 0.5 to 1.0mm, is a versatile solution for static and dynamic air & gas drying needs. Trusted for applications like desiccant packaging, filtration, and air breathing systems, this Type A silica gel meets stringent industry standards, including MIL-D-3716 Type I. With adsorption capacities ranging from 6.3 to 36.7 gm of H2O per 100 gm of desiccant at varying humidity levels, it ensures efficient moisture absorption. Ideal for compressed air drying, natural gas dehydration, and air dehumidification, this White Silica Gel offers reliable performance in critical operations.
Product Specifications
Key Features And Benefits 0

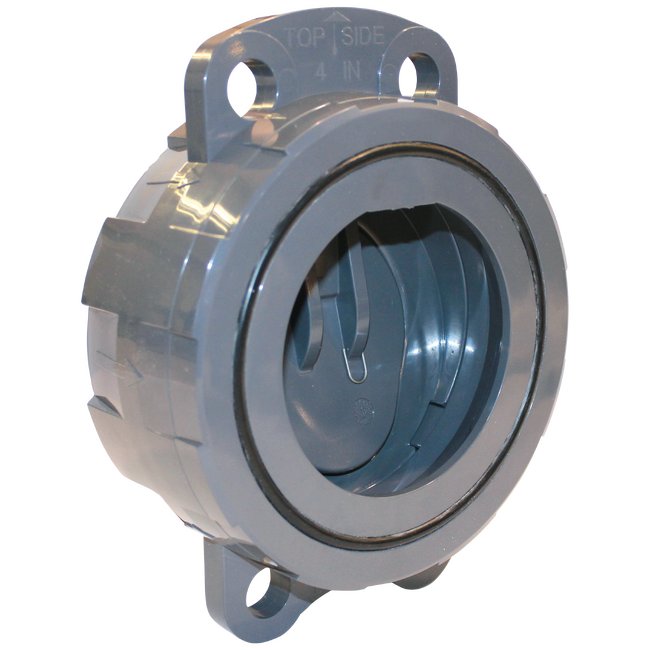

Robust Wide Pattern Body in PVC â No Need for Spacers or specialty flanges. One-Piece Disc and Shaft Design Designed for ANSI150 and PN10 Flanges High Cv Rating Equal to Metal Check Valves Lower Closing Pressure Than Swing Check Valves Integral Bolt Eyes for Ease of Installation for Large Sizes Can be Installed in Vertical or Horizontal Position FPM or EPDM Gasket and Face Seal Pressure Rated to 150 PSI / PN10 In All Sizes
Materials 0
PVC per ASTM D1784 Cell Class 12454 CPVC per ASTM D1784 Cell Class 23447 GFPP per ASTM D4101 Cell Class 85580 FPM and EPDM Gasket and Disc Seals
Options 0
316 Stainless Steel or Hastelloy® Disc Spring Return
Specifications A
1.80 in | 45.72 mm
Specifications B
0.25 in | 6.35 mm
Specifications D
4.00 in | 101.60 mm
Specifications E
2.03 in | 51.56 mm
Specifications F
5.25 in | 133.35 mm
Specifications Flow Capacity Cv
90.0
Specifications H
0 º
Specifications J
0 º
Specifications Material
PVC
Specifications Opening Pressure Estimated
1 psi
Specifications O Rings Seals
FPM
Specifications Pressure Rating
150 psi at 70°F Non-Shock
Specifications Sealing Pressure With Or Without Spring
3 psi
Specifications Size
2"
Specifications Spring Material
No Spring
Specifications Weight
0.46 kg | 1.01 lb
Applications 0
Water and Wastewater Treatment Water / Theme Parks Chemical Processing Aquatic and Animal Life Support Systems Marine and Corrosive Environments Mining Landfills
