White Beaded Silica Gel Desiccant 2.0-5.0mm
White Beaded Silica Gel Desiccant 2.0-5.0mm
SKU:CHE-8ca96a
Efficient White Silica Gel Desiccant 2.0-5.0mm - Ideal for air & gas drying, Transo-Pharm quality.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
White Beaded Silica Gel Desiccant 2.0-5.0mm
$89.99
Quantity: 1
Claim Your Seller Account
White Beaded Silica Gel Desiccant 2.0-5.0mm
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Discover the White Beaded Silica Gel Desiccant with a particle size of 2.0 to 5.0mm, trusted for air & gas drying in static applications. This Transo-Pharm product is ideal for desiccant packaging, air breathers, and more. With a bulk density of 46 lb/ft³ and an adsorption capacity up to 36.3 gm of H2O per 100 gm of desiccant, it excels in compressed air drying, filtration, and natural gas dehydration.
Product Specifications
Key Features And Benefits 0

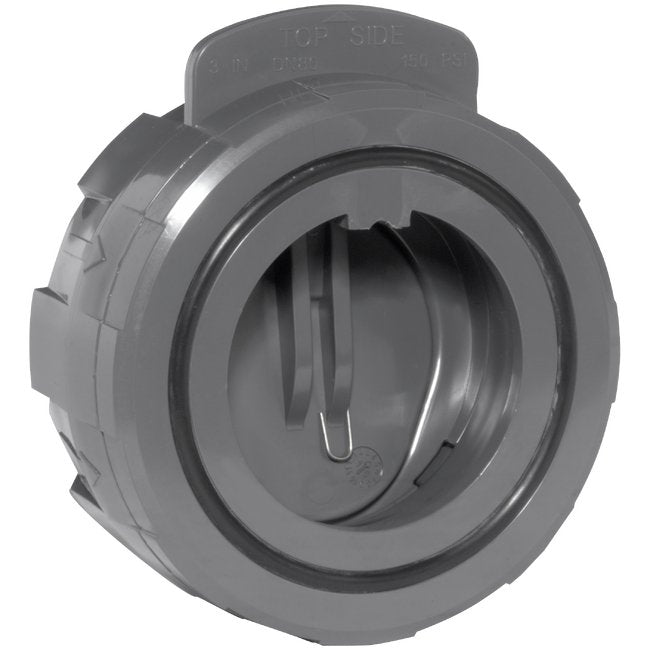

Robust Wide Pattern Body in PVC â No Need for Spacers or specialty flanges. One-Piece Disc and Shaft Design Designed for ANSI150 and PN10 Flanges High Cv Rating Equal to Metal Check Valves Lower Closing Pressure Than Swing Check Valves Integral Bolt Eyes for Ease of Installation for Large Sizes Can be Installed in Vertical or Horizontal Position FPM or EPDM Gasket and Face Seal Pressure Rated to 150 PSI / PN10 In All Sizes
Materials 0
PVC per ASTM D1784 Cell Class 12454 CPVC per ASTM D1784 Cell Class 23447 GFPP per ASTM D4101 Cell Class 85580 FPM and EPDM Gasket and Disc Seals
Options 0
316 Stainless Steel or Hastelloy® Disc Spring Return
Specifications A
2.30 in | 58.42 mm
Specifications B
0.25 in | 6.35 mm
Specifications D
4.75 in | 120.65 mm
Specifications E
2.43 in | 61.72 mm
Specifications F
6.00 in | 152.40 mm
Specifications Flow Capacity Cv
155
Specifications H
0 º
Specifications J
0 º
Specifications Material
PVC
Specifications Opening Pressure Estimated
1 psi
Specifications O Rings Seals
FPM
Specifications Pressure Rating
150 psi at 70°F Non-Shock
Specifications Sealing Pressure With Or Without Spring
3 psi
Specifications Size
2-1/2"
Specifications Spring Material
No Spring
Specifications Weight
0.74 kg | 1.62 lb
Applications 0
Water and Wastewater Treatment Water / Theme Parks Chemical Processing Aquatic and Animal Life Support Systems Marine and Corrosive Environments Mining Landfills
