White Silicone Step Plug
White Silicone Step Plug
SKU:SIL-dfd109
Versatile White Silicone Step Plug for threaded or non-threaded blind/through holes, color-coded for easy identification, with 600°F temperature rating.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
White Silicone Step Plug
$29.99
Quantity: 1
Claim Your Seller Account
White Silicone Step Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

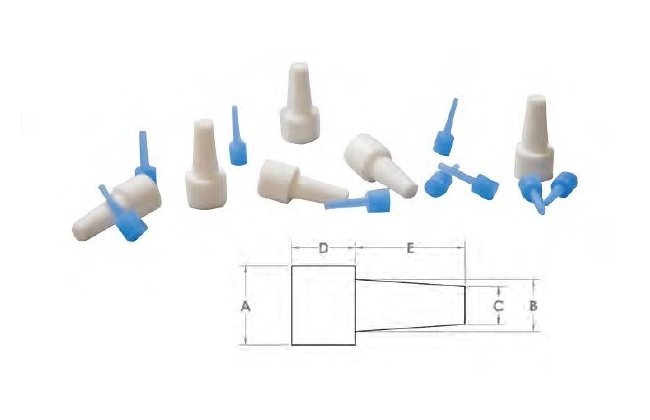

The White Silicone Step Plug (SSP-M8) is a versatile solution for sealing threaded or non-threaded blind or through holes. With dimensions A: 0.495 Inch, B: 0.327 Inch, C: 0.235 Inch, D: 0.400 Inch, and E: 0.685 Inch, this plug is color-coded for easy identification and reusable. It features a temperature rating of 600°F/315°C, aiding in powder coating, e-coating, wet painting, anodizing, and plating processes. The flange design enhances placement and removal efficiency, making it ideal for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Color
White
Specifications Dimension A
0.495 Inch | 12.57 mm
Specifications Dimension B
0.327 Inch | 8.31 mm
Specifications Dimension C
0.235 Inch | 5.97 mm
Specifications Dimension D
0.400 Inch | 10.16 mm
Specifications Dimension E
0.685 Inch | 17.40 mm
Specifications Features
Temperature Rating 600 °F/315 °C For use in Threaded or Non-threaded Blind or Through Holes Masks Lead-in Threads and Grounding Areas Flange Aids in Placement and Removal Color Coded for Easy Identification and Reusable Used in Powder Coating, E-Coating, Wet Painting, Anodizing and Plating
Specifications Quantitybag
250
