White T1E Narrow Finger HD Wiring Duct, 1" x 1.5"
White T1E Narrow Finger HD Wiring Duct, 1" x 1.5"
SKU:T1E-7eaee1
Customizable White T1E Narrow Finger HD Wiring Duct for efficient wire management and protection. Includes accessories for easy installation.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
White T1E Narrow Finger HD Wiring Duct, 1" x 1.5"
$19.99
Quantity: 1
Claim Your Seller Account
White T1E Narrow Finger HD Wiring Duct, 1" x 1.5"
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

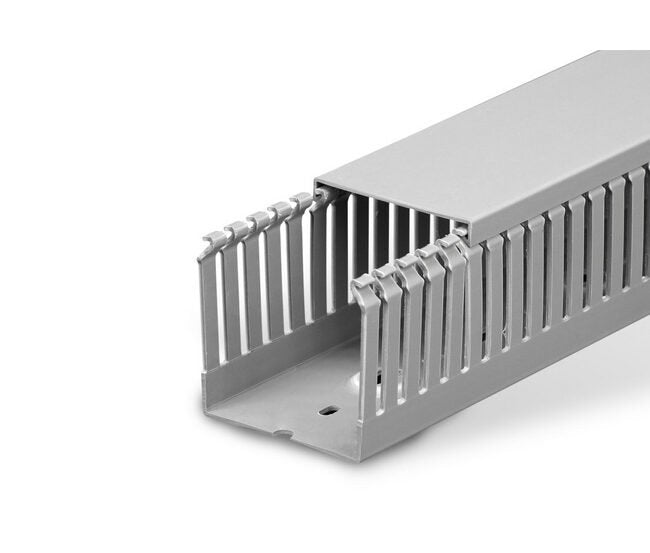

The White T1E Narrow Finger High Density Wiring Duct features customizable length, fingers, and hole patterns for efficient wire management. Its reusable design with restricted slot opening and burr-free edges ensures wire protection. This duct also offers accessories like wire retainers, separators, and identification tags for enhanced organization and installation ease.
Product Specifications
Accessories Accessories
Wire duct accessories that make installation easier, faster, and safer. Get organized with covers, cable attachments, wire retainers, separators, identification tags, wiring duct rivets, and rivet tools that make wire installation a breeze.Available for T1 and T1E ducts.

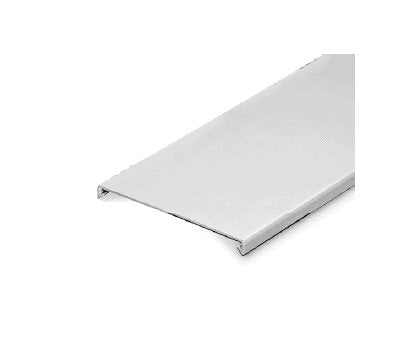

Accessories Cable Duct Lid
T1 covers are all non-slip designed for maximum grip with the least encumbrance.Lids for NAB ducts include a protective, removable film, on sizes 1.5" and above, that is easily removable after lid installation.

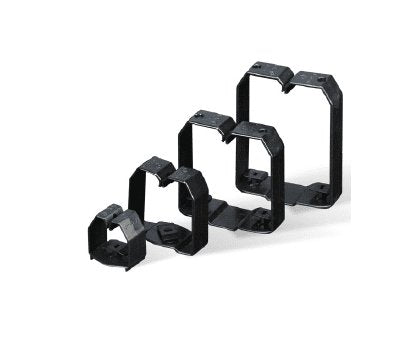

Accessories Cable Duct Wire Retainer
Keeps wires in during installation, provides additional strain relief for the duct fingers, and eliminates bulging of the sidewall.Wire retainers that mount to the duct fingers are also available with pre-determined score lines for a quick solution during initial panel installation.

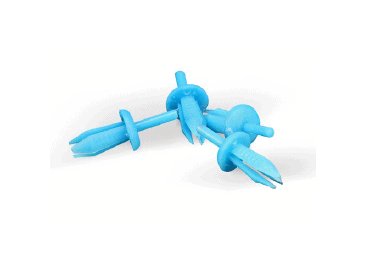

Accessories Ductfix Rivets
Quickly install wiring ducts with standard mounting holes.Elastic Vibration â dampening headGood temperature resistanceExcellent mechanic propertiesExtremely short installation timeInsulating â Functional - Easy To Apply Hole size R4 - 5/32â (4 mm) - R6 - 7/32â (5.5 mm)
Accessories Ductmark Identification Tag
Snaps onto the sidewall of the T1 and NAB duct series to identify wire/circuits inside of the wire duct Permanent installation Magnified slide for increased visibilityStays on during maintenance or removal of the cover
Accessories Duct Cutters
Fast, quiet, and dust-free operation!Heavy-duty stainless steel blade Smooth, burr-free cuts on duct and coverFor large volumes, try our bench-mounted duct cutter.
Accessories Rivet Tools
Easily install rivets with one quick push.
Accessories Separators
(for T1/ T1E only )Keeps your wires organized.
Accessories Wire Duct Mounting Inserts
Mount components and separators inside the duct with a simple quarter turn!Separate circuits by mounting smaller ducts inside bigger ductsStackable!Easily tighten a cable bundle by passing a cable tie through it
Advantages Advantages
Customizable: length, fingers, hole patterns, and adhesive backing!Expandable and retrofittableCost, resource, and time-efficientReusableRestricted slot opening retains wire betterTwo pre-determined break lines for easily removing finger or finger basesBurr-free edges wonât damage wiresRecessed mounting holes for fast component mounting
Specifications Actual Dimension E
0.16 in
Specifications Actual Dimension F
0.24 in
Specifications Actual Dimension H
1.57 in
Specifications Actual Dimension W
1.00 mm
Specifications Color
White
Specifications Nominal Height
1-1/2 in | 40 mm
Specifications Nominal Width
1 in | 25 mm
Specifications Standard Carton Quantity
18
