White T1E Narrow Finger High Density Wiring Duct - 4x4 inches
White T1E Narrow Finger High Density Wiring Duct - 4x4 inches
SKU:T1E-a12c19
Versatile 4x4 inch White T1E High Density Wiring Duct for secure and efficient wire organization, customizable and reusable. Meets Federal/DoD standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
White T1E Narrow Finger High Density Wiring Duct - 4x4 inches
$24.99
Quantity: 1
Claim Your Seller Account
White T1E Narrow Finger High Density Wiring Duct - 4x4 inches
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The White T1E Narrow Finger High Density Wiring Duct measuring 4 inches in nominal width and height is a versatile solution for efficient wire organization. With customizable features like length, fingers, and hole patterns, this duct offers cost and time efficiency. The reusable design with restricted slot openings ensures secure wire retention. Installation is made easier with accessories like wire retainers, separators, and identification tags. This duct meets Federal/DoD procurement standards and is TAA compliant for institutional buyers.
Product Specifications
Accessories Accessories
Wire duct accessories that make installation easier, faster, and safer. Get organized with covers, cable attachments, wire retainers, separators, identification tags, wiring duct rivets, and rivet tools that make wire installation a breeze.Available for T1 and T1E ducts.

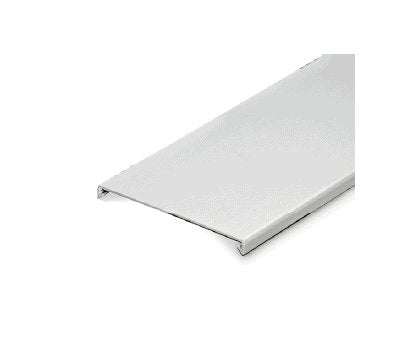

Accessories Cable Duct Lid
T1 covers are all non-slip designed for maximum grip with the least encumbrance.Lids for NAB ducts include a protective, removable film, on sizes 1.5" and above, that is easily removable after lid installation.
Accessories Cable Duct Wire Retainer
Keeps wires in during installation, provides additional strain relief for the duct fingers, and eliminates bulging of the sidewall.Wire retainers that mount to the duct fingers are also available with pre-determined score lines for a quick solution during initial panel installation.

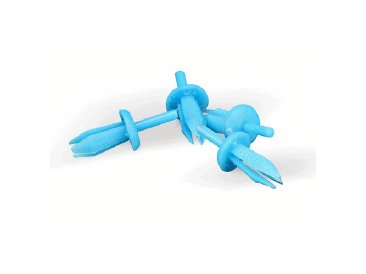

Accessories Ductfix Rivets
Quickly install wiring ducts with standard mounting holes.Elastic Vibration â dampening headGood temperature resistanceExcellent mechanic propertiesExtremely short installation timeInsulating â Functional - Easy To Apply Hole size R4 - 5/32â (4 mm) - R6 - 7/32â (5.5 mm)
Accessories Ductmark Identification Tag
Snaps onto the sidewall of the T1 and NAB duct series to identify wire/circuits inside of the wire duct Permanent installation Magnified slide for increased visibilityStays on during maintenance or removal of the cover
Accessories Duct Cutters
Fast, quiet, and dust-free operation!Heavy-duty stainless steel blade Smooth, burr-free cuts on duct and coverFor large volumes, try our bench-mounted duct cutter.
Accessories Rivet Tools
Easily install rivets with one quick push.
Accessories Separators
(for T1/ T1E only )Keeps your wires organized.

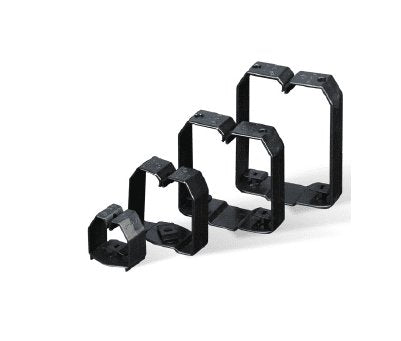

Accessories Wire Duct Mounting Inserts
Mount components and separators inside the duct with a simple quarter turn!Separate circuits by mounting smaller ducts inside bigger ductsStackable!Easily tighten a cable bundle by passing a cable tie through it
Advantages Advantages
Customizable: length, fingers, hole patterns, and adhesive backing!Expandable and retrofittableCost, resource, and time-efficientReusableRestricted slot opening retains wire betterTwo pre-determined break lines for easily removing finger or finger basesBurr-free edges wonât damage wiresRecessed mounting holes for fast component mounting
Specifications Actual Dimension E
0.16 in
Specifications Actual Dimension F
0.24 in
Specifications Actual Dimension H
3.15 in
Specifications Actual Dimension W
3.94 mm
Specifications Color
White
Specifications Nominal Height
4 in | 100 mm
Specifications Nominal Width
4 in | 100 mm
Specifications Standard Carton Quantity
8
