Wichita Air Tube Disc Clutch PTO

Wichita Air Tube Disc Clutch PTO

CLU-3abfa6

Experience industry-leading reliability and performance with the Wichita Air Tube Disc Clutch PTO, designed for smooth operations up to 700 HP.

$1,599.99
$1,599.99
Sale

Initiate Order

Wichita Air Tube Disc Clutch PTO

Wichita Air Tube Disc Clutch PTO

$1,599.99

Quantity: 1

Claim Your Seller Account

Wichita Air Tube Disc Clutch PTO

Wichita Air Tube Disc Clutch PTO

$1,599.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Wichita Air Tube Disc Clutch PTO sets the industry standard for reliability and performance. Featuring a disc design for smooth start-ups, air activation for remote controls, and high-speed operation up to 700 HP, this clutch ensures efficient power transmission. With a heavy-duty Fuller® 'Solo' truck clutch preventing torsional vibration, spline wear, and engine/transmission damage, this PTO delivers superior durability. Ideal for various diesel engines, the Wichita PTO's bearing support eliminates crankshaft sideloads for enhanced longevity and performance.

Product Specifications

Design Features 0
Disc design provides smooth, shock free start-ups.Air activated-ideal for automatic or remote controls.Bearing support eliminates sideload on crankshaft.High speed air tube not affected by centrifugal force.No O-rings or diaphragms to wear out.Dynamically balanced for high speed operation.Models available for all popular diesel engines. Up to 700 HP capacity.
General Description 0
Two mechanically activated PTO's are now available in addition to the performance-proven Air Tube Disc Clutch PTO's. Complete clutch engagement of the mechanical PTO units is assured with each release of the hand lever due to the incorporation of a heavy-duty Fuller® "Solo" truck clutch. With its many outstanding features, the Fuller clutch used in the Wichita PTO prevents torsional vibration from damaging engine or transmission components, or causing spline wear. The result is superior Power Take-Off performance and durability!
Specifications Actuation
Air Applied
Specifications Bolt Hole Diameter
21/32
Specifications Clutch Size
218

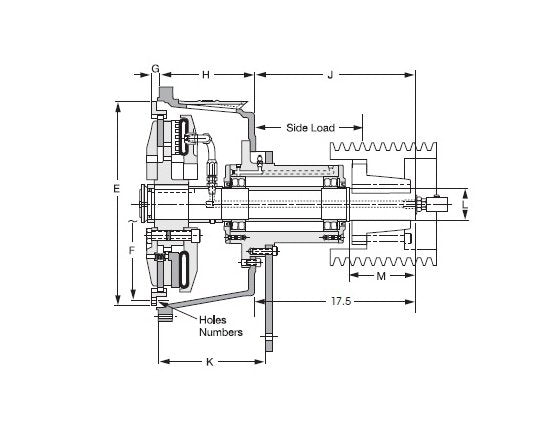

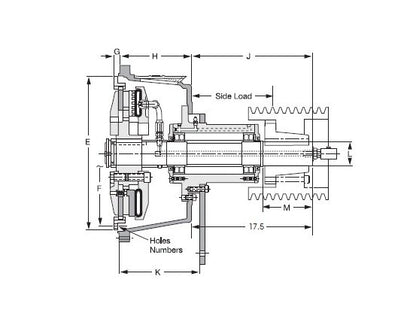

Specifications Dimension E 0000 0005
22.498 in
Specifications Dimension F
21-3/8 in
Specifications Dimension G
0.625 in
Specifications Dimension H
11-3/16 in
Specifications Dimension J
17-17/32 in
Specifications Dimension K
12-5/32 in
Specifications Dimension L 0000 To 0002
3.625 in
Specifications Dimension M
7-1/4 in
Specifications Keyway
7/8 X 7/16
Specifications Manufacturer
Wichita Clutch
Specifications Number Of Bolt Holes
6
Specifications Sae Number
0
Specifications Torque Rating
129000 lb·in
Specifications Type
B
Applications 0

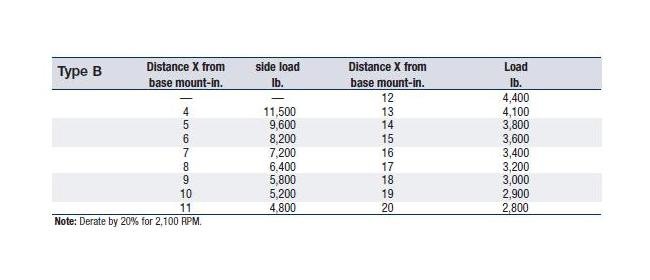

The In-line PTO design provides direct drive operation with side load capability. It has an automatic self-adjusting feature and does not require a pilot bearing. Other features such as standard SAE flywheel mounting, interchangeable clutch and clutch housing, constant plate load and easy maintenance add up to superior performance.Side Load PTO’s utilize a pair of heavy-duty roller bearings fitted in to the shaft housing. The bearing support system eliminates the transmission of side loads that could reduce durability or even damage the engine’s crank -shaft. Its torque capacities range up to 420 HP @ 2100 RPM.Air-Tube Disc Power Take-Off Clutches provide dependable trouble-free performance on indirect drives with large over hung loads on engines of 250-700 HP. The Wichita design isolates the side load from the engine’s crankshaft for long service life. Simple air controls can be utilized to remotely control the clutch as well as the throttle. Wichita PTO’s have been successfully used for oil field, construction and marine applications.
