Wichita Air Tube Disc Take-Off Clutches 214H
Wichita Air Tube Disc Take-Off Clutches 214H
SKU:CLU-2caf32
Enhance engine performance with Wichita Air Tube Disc Take-Off Clutches 214H. Superior durability and efficiency for various applications.
Regular price
$1,850.99
Regular price
Sale price
$1,850.99
Unit price
per
Initiate Order
Wichita Air Tube Disc Take-Off Clutches 214H
$1,850.99
Quantity: 1
Claim Your Seller Account
Wichita Air Tube Disc Take-Off Clutches 214H
$1,850.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the pinnacle of Power Take-Off reliability with Wichita Air Tube Disc Take-Off Clutches 214H. Featuring an industry-best Fuller 'Solo' truck clutch, this clutch delivers superior performance and durability. With a smooth, shock-free start-up design, high-speed operation, and heavy-duty construction for up to 700 HP capacity, it ensures optimal efficiency and reliability for a wide range of diesel engines. The Wichita PTO design isolates side loads for extended service life, making it ideal for oil field, construction, and marine applications.
Product Specifications
Design Features 0
Disc design provides smooth, shock free start-ups.Air activated-ideal for automatic or remote controls.Bearing support eliminates sideload on crankshaft.High speed air tube not affected by centrifugal force.No O-rings or diaphragms to wear out.Dynamically balanced for high speed operation.Models available for all popular diesel engines. Up to 700 HP capacity.
General Description 0
Two mechanically activated PTO's are now available in addition to the performance-proven Air Tube Disc Clutch PTO's. Complete clutch engagement of the mechanical PTO units is assured with each release of the hand lever due to the incorporation of a heavy-duty Fuller® "Solo" truck clutch. With its many outstanding features, the Fuller clutch used in the Wichita PTO prevents torsional vibration from damaging engine or transmission components, or causing spline wear. The result is superior Power Take-Off performance and durability!
Specifications Actuation
Air Applied
Specifications Bolt Hole Diameter
17/32
Specifications Clutch Size
214H

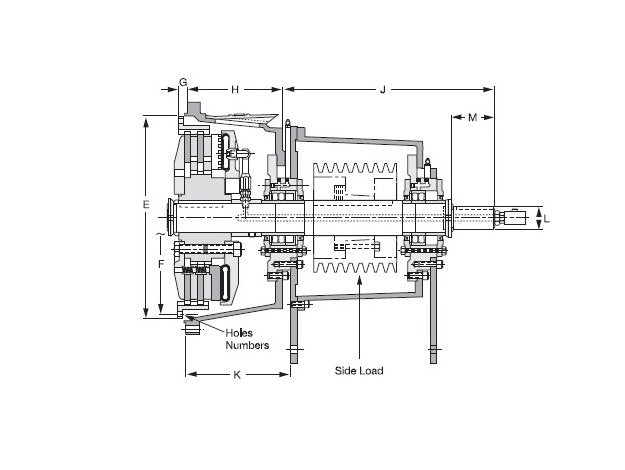

Specifications Dimension E 0000 0005
18.375 in
Specifications Dimension F
17-1/4 in
Specifications Dimension G
1.000 in
Specifications Dimension H
10-13/16 in
Specifications Dimension J
23-15/16 in
Specifications Dimension K
11-13/16 in
Specifications Dimension L 0000 To 0002
2.500 in
Specifications Dimension M
4-5/8 in
Specifications Keyway
5/8 X 5/16
Specifications Manufacturer
Wichita Clutch
Specifications Number Of Bolt Holes
8
Specifications Number Type Of Grooves
8-"8V"
Specifications Pd Of Sheave
12.3
Specifications Sae Number
1
Specifications Torque Rating
71600 lb·in

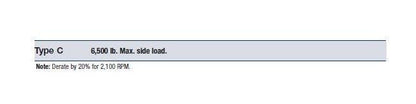

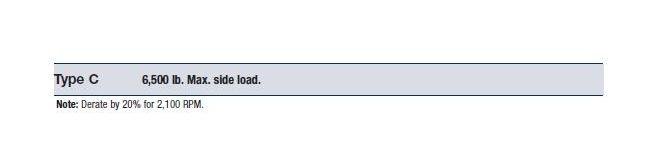

Specifications Type
C
Applications 0
The In-line PTO design provides direct drive operation with side load capability. It has an automatic self-adjusting feature and does not require a pilot bearing. Other features such as standard SAE flywheel mounting, interchangeable clutch and clutch housing, constant plate load and easy maintenance add up to superior performance.Side Load PTOâs utilize a pair of heavy-duty roller bearings fitted in to the shaft housing. The bearing support system eliminates the transmission of side loads that could reduce durability or even damage the engineâs crank -shaft. Its torque capacities range up to 420 HP @ 2100 RPM.Air-Tube Disc Power Take-Off Clutches provide dependable trouble-free performance on indirect drives with large over hung loads on engines of 250-700 HP. The Wichita design isolates the side load from the engineâs crankshaft for long service life. Simple air controls can be utilized to remotely control the clutch as well as the throttle. Wichita PTOâs have been successfully used for oil field, construction and marine applications.
