Wichita Air Tube Disc Take-Off Clutches
Wichita Air Tube Disc Take-Off Clutches
SKU:CLU-14ea55
Enhance performance with Wichita Air Tube Disc Take-Off Clutches - ideal for various applications, up to 700 HP capacity.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Wichita Air Tube Disc Take-Off Clutches
$1,899.99
Quantity: 1
Claim Your Seller Account
Wichita Air Tube Disc Take-Off Clutches
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled reliability and performance with the Wichita Air Tube Disc Take-Off Clutches. These clutches feature a disc design for smooth start-ups, air-activated operation suitable for automatic controls, and bearing support to eliminate side load on the crankshaft. With models available for diesel engines up to 700 HP capacity, these clutches are ideal for various applications including oil fields, construction, and marine. The Wichita design ensures long service life by isolating side loads from the engine's crankshaft, while simple air controls enable remote operation of the clutch and throttle.
Product Specifications
Design Features 0
Disc design provides smooth, shock free start-ups.Air activated-ideal for automatic or remote controls.Bearing support eliminates sideload on crankshaft.High speed air tube not affected by centrifugal force.No O-rings or diaphragms to wear out.Dynamically balanced for high speed operation.Models available for all popular diesel engines. Up to 700 HP capacity.
General Description 0
Two mechanically activated PTO's are now available in addition to the performance-proven Air Tube Disc Clutch PTO's. Complete clutch engagement of the mechanical PTO units is assured with each release of the hand lever due to the incorporation of a heavy-duty Fuller® "Solo" truck clutch. With its many outstanding features, the Fuller clutch used in the Wichita PTO prevents torsional vibration from damaging engine or transmission components, or causing spline wear. The result is superior Power Take-Off performance and durability!
Specifications Actuation
Air Applied
Specifications Bolt Hole Diameter
21/32
Specifications Clutch Size
118

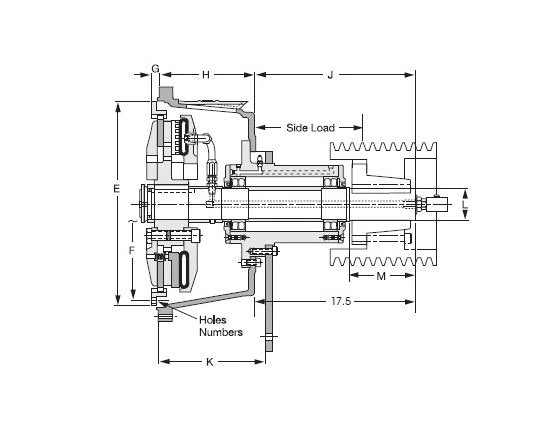

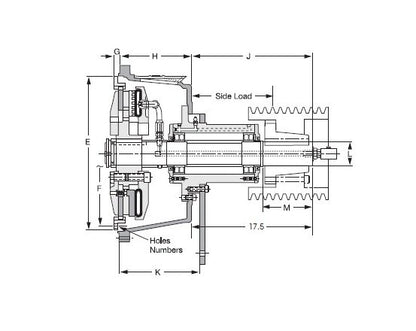

Specifications Dimension E 0000 0005
22.498 in
Specifications Dimension F
21-3/8 in
Specifications Dimension G
0.625 in
Specifications Dimension H
10-13/16 in
Specifications Dimension J
17-17/32 in
Specifications Dimension K
11-25/32 in
Specifications Dimension L 0000 To 0002
3.625 in
Specifications Dimension M
7-1/4 in
Specifications Keyway
7/8 X 7/16
Specifications Manufacturer
Wichita Clutch
Specifications Number Of Bolt Holes
6
Specifications Sae Number
0
Specifications Torque Rating
64500 lb·in
Specifications Type
B
Applications 0
The In-line PTO design provides direct drive operation with side load capability. It has an automatic self-adjusting feature and does not require a pilot bearing. Other features such as standard SAE flywheel mounting, interchangeable clutch and clutch housing, constant plate load and easy maintenance add up to superior performance.Side Load PTOâs utilize a pair of heavy-duty roller bearings fitted in to the shaft housing. The bearing support system eliminates the transmission of side loads that could reduce durability or even damage the engineâs crank -shaft. Its torque capacities range up to 420 HP @ 2100 RPM.Air-Tube Disc Power Take-Off Clutches provide dependable trouble-free performance on indirect drives with large over hung loads on engines of 250-700 HP. The Wichita design isolates the side load from the engineâs crankshaft for long service life. Simple air controls can be utilized to remotely control the clutch as well as the throttle. Wichita PTOâs have been successfully used for oil field, construction and marine applications.
