The Wichita AquaMaKKs Water Cooled Clutches and Brakes with Composite Water Jacket offer outstanding performance for both pneumatic and hydraulic applications. Featuring alternating friction discs and water jackets, these clutches and brakes ensure reliable torque transmission with excellent heat dissipation thanks to copper wear plates. Available in 19", 25", and 36" diameters with dynamic torque ratings ranging from 66,500 in.lb. to 1,611,000 in.lbs., these units deliver consistent and precise operation, meeting the demanding requirements of industrial applications.

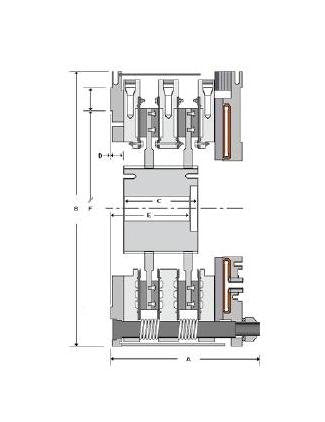

Product Specifications
Specifications Actuation
Air Applied
Specifications Assembly Number
7-125AM-W-1300
Specifications Bolt Circle Diameter C
0.656 in | 17 mm
Specifications Diameter A
34.12 in | 867 mm
Specifications Diameter B
34.12 in | 867 mm
Specifications Dynamic Torque Rating 100 Psi7 Bar
180190 lb·in | 20343 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
144152 lb·in | 16275 Nm
Specifications Heat Capacity For Parallel Water Hosing
350 hp | 261 kW
Specifications Heat Capacity For Series Water Hosing
175 hp | 130 kW
Specifications Holes Quantity
10
Specifications Hole Circle
28.75 in | 730 mm
Specifications Inner Diameter Length F
24.38 in | 619 mm
Specifications Length A
13.75 in | 349 mm
Specifications Length C
4.50 in | 114 mm
Specifications Length D
1.38 in | 35 mm
Specifications Length E
4.88 in | 124 mm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Bore Size
7.25 in | 184 mm
Specifications Outer Diameter Length F
30 in | 762 mm
Specifications Pilot Diameter B
16.7 in | 424 mm
Specifications Plt Thickness
1.63 in | 41 mm
