The Wichita AquaMaKKs Water Cooled Clutches and Brakes with Composite Water Jacket are precision-engineered for reliable performance in industrial applications. These pneumatically or hydraulically controlled units utilize alternating friction discs and water jackets for efficient cooling and torque transmission. With copper wear plates ensuring superior heat dissipation, these models are available in 19", 25", and 36" diameters, offering torque ranges from 66,500 in.lb. @ 80 PSI to 1,611,000 in.lbs. @ 100 PSI. Designed for durability and performance, these clutches and brakes are ideal for heavy-duty operations.
Product Specifications
Specifications Actuation
Air Applied
Specifications Assembly Number
7-325AM-W-1300

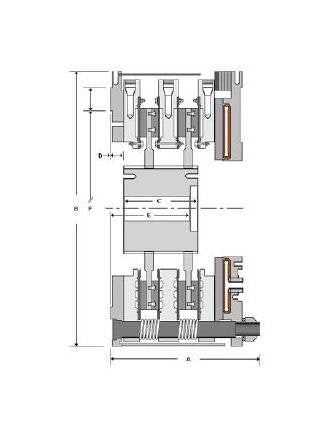

Specifications Bolt Circle Diameter C
0.656 in | 17 mm
Specifications Diameter A
34.12 in | 867 mm
Specifications Diameter B
34.12 in | 867 mm
Specifications Dynamic Torque Rating 100 Psi7 Bar
495000 lb·in | 55886 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
396000 lb·in | 44708 Nm
Specifications Heat Capacity For Parallel Water Hosing
1200 hp | 895 kW
Specifications Heat Capacity For Series Water Hosing
600 hp | 447 kW
Specifications Holes Quantity
10
Specifications Hole Circle
28.75 in | 730 mm
Specifications Inner Diameter Length F
24.38 in | 619 mm
Specifications Length A
23.99 in | 609 mm
Specifications Length C
16.39 in | 416 mm
Specifications Length D
1.38 in | 35 mm
Specifications Length E
14.57 in | 370 mm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Bore Size
9.38 in | 238 mm
Specifications Outer Diameter Length F
30 in | 762 mm
Specifications Pilot Diameter B
16.7 in | 424 mm
Specifications Plt Thickness
1.63 in | 41 mm
