The Wichita AquaMaKKs Water Cooled Clutches and Brakes with Composite Water Jacket are precision-engineered, pneumatically or hydraulically controlled transmission components designed for optimal performance and durability. Featuring alternating friction discs and water jackets, these clutches and brakes ensure efficient torque transmission with copper wear plates for superior heat dissipation. Available in varying diameter sizes and torque ranges, these units offer reliability and longevity in demanding industrial applications.
Product Specifications
Specifications Actuation
Air Applied
Specifications Assembly Number
7-225AM-W-1300

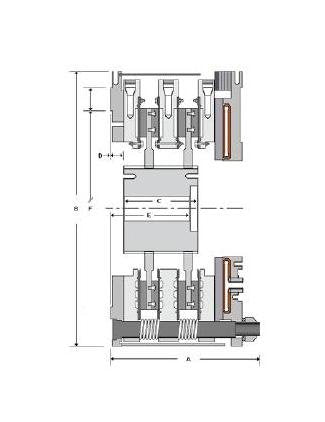

Specifications Bolt Circle Diameter C
0.656 in | 17 mm
Specifications Diameter A
34.12 in | 867 mm
Specifications Diameter B
34.12 in | 867 mm
Specifications Dynamic Torque Rating 100 Psi7 Bar
360000 lb·in | 40644 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
264000 lb·in | 29806 Nm
Specifications Heat Capacity For Parallel Water Hosing
700 hp | 522 kW
Specifications Heat Capacity For Series Water Hosing
350 hp | 261 kW
Specifications Holes Quantity
10
Specifications Hole Circle
28.75 in | 730 mm
Specifications Inner Diameter Length F
24.38 in | 619 mm
Specifications Length A
18.86 in | 479 mm
Specifications Length C
8.63 in | 219 mm
Specifications Length D
1.38 in | 35 mm
Specifications Length E
10.01 in | 254 mm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Bore Size
7.38 in | 187 mm
Specifications Outer Diameter Length F
30 in | 762 mm
Specifications Pilot Diameter B
16.7 in | 424 mm
Specifications Plt Thickness
1.63 in | 41 mm
