The Wichita AquaMaKKs Water Cooled Clutches and Brakes with Composite Water Jacket are engineered for superior performance in industrial applications. These clutches and brakes are pneumatically or hydraulically controlled and boast a unique design featuring alternating friction discs and water jackets. With copper wear plates for exceptional heat dissipation, they ensure durability and reliability. Available in 19", 25", and 36" diameters, with torque ratings ranging from 66,500 to 1,611,000 in.lb., these precision components meet the stringent standards of industrial operations.

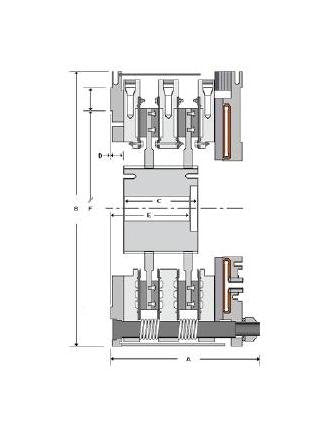

Product Specifications

Specifications Actuation

Air Applied

Specifications Assembly Number

7-119AM-W-1300

Specifications Bolt Circle Diameter C

0.656 in | 17 mm

Specifications Diameter A

28.30 in | 719 mm

Specifications Diameter B

28.3 in | 719 mm

Specifications Dynamic Torque Rating 100 Psi7 Bar

91000 lbÂ·in | 10274 Nm

Specifications Dynamic Torque Rating 80 Psi55 Bar

66500 lbÂ·in | 7508 Nm

Specifications Heat Capacity For Parallel Water Hosing

185 hp | 138 kW

Specifications Heat Capacity For Series Water Hosing

93 hp | 69 kW

Specifications Holes Quantity

Specifications Hole Circle

22 in | 559 mm

Specifications Inner Diameter Length F

18.25 in | 464 mm

Specifications Length A

12.35 in | 314 mm

Specifications Length C

3.63 in | 92 mm

Specifications Length D

1.25 in | 32 mm

Specifications Length E

3.75 in | 95 mm

Specifications Manufacturer

Wichita Clutch

Specifications Maximum Bore Size

5.56 in | 141 mm

Specifications Outer Diameter Length F

23.25 in | 591 mm

Specifications Pilot Diameter B

11 in | 279 mm

Specifications Plt Thickness

1.38 in | 35 mm
