Wichita AquaMaKKs Water Cooled Clutches & Brakes

Name: Wichita AquaMaKKs Water Cooled Clutches & Brakes
Brand: Clutch Engineering
SKU: CLU-3d7f93
Price: 1899.99 USD
Availability: OutOfStock

SKU:CLU-3d7f93

Explore our high-performance AquaMaKKs Clutches & Brakes - Perfect for industrial applications!

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wichita AquaMaKKs Water Cooled Clutches and Brakes with Composite Water Jacket are expertly designed for optimal performance in industrial applications. These pneumatically or hydraulically controlled units feature alternating friction discs and water jackets, ensuring efficient torque transmission. With copper wear plates for superior heat dissipation, these clutches and brakes come in 19", 25", and 36" sizes, offering torque ranges from 66,500 in.lb. @ 80 PSI to 1,611,000 in.lbs. @ 100 PSI. Ideal for demanding operations that require reliable and durable components.

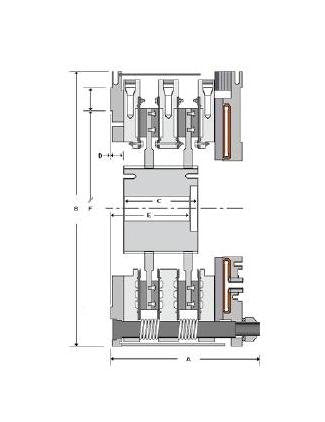

Product Specifications

Specifications Actuation

Air Applied

Specifications Assembly Number

7-136AM-W-1300

Specifications Bolt Circle Diameter C

1.060 in | 27 mm

Specifications Diameter A

45.51 in | 1156 mm

Specifications Diameter B

45.51 in | 1156 mm

Specifications Dynamic Torque Rating 100 Psi7 Bar

402000 lbÂ·in | 45386 Nm

Specifications Dynamic Torque Rating 80 Psi55 Bar

322000 lbÂ·in | 36354 Nm

Specifications Heat Capacity For Parallel Water Hosing

850 hp | 634 kW

Specifications Heat Capacity For Series Water Hosing

425 hp | 317 kW

Specifications Holes Quantity

Specifications Hole Circle

42 in | 1067 mm

Specifications Inner Diameter Length F

18.38 in | 467 mm

Specifications Length A

15 in | 381 mm

Specifications Length C

5 in | 127 mm

Specifications Length D

2.36 in | 60 mm

Specifications Length E

7.36 in | 187 mm

Specifications Manufacturer

Wichita Clutch

Specifications Maximum Bore Size

11.25 in | 286 mm

Specifications Outer Diameter Length F

44.50 in | 1130 mm

Specifications Pilot Diameter B

16.5 in | 419 mm

Specifications Plt Thickness

1.61 in | 41 mm
