The Wichita AquaMaKKs⢠Water Cooled Clutches and Brakes with Composite Water Jacket are precision-engineered for outstanding performance and durability. These pneumatically or hydraulically controlled units feature alternating friction discs and water jackets, ensuring exceptional heat dissipation with copper wear plates. With torque ranging from 66,500 in.lb. to 1,611,000 in.lbs., and dynamic torque ratings of up to 161,000 lb·in, these clutches and brakes are suitable for heavy-duty applications. Available in 19", 25", and 36" diameter sizes, they provide reliable torque transmission under diverse operating conditions.
Product Specifications

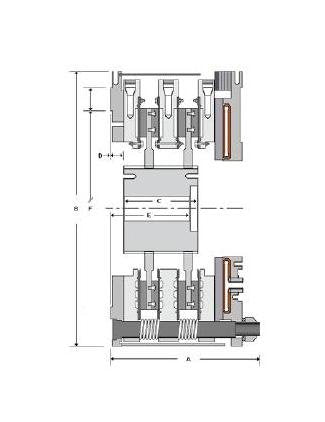

Specifications Actuation
Air Applied
Specifications Assembly Number
7-436AM-W-1300
Specifications Bolt Circle Diameter C
1.060 in | 27 mm
Specifications Diameter A
45.51 in | 1156 mm
Specifications Diameter B
45.51 in | 1156 mm
Specifications Dynamic Torque Rating 100 Psi7 Bar
1610000 lb·in | 181769 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
1288000 lb·in | 145415 Nm
Specifications Heat Capacity For Parallel Water Hosing
3400 hp | 2535 kW
Specifications Heat Capacity For Series Water Hosing
1700 hp | 1268 kW
Specifications Holes Quantity
10
Specifications Hole Circle
42 in | 1067 mm
Specifications Inner Diameter Length F
18.38 in | 467 mm
Specifications Length A
32.79 in | 833 mm
Specifications Length C
23.16 in | 588 mm
Specifications Length D
2.36 in | 60 mm
Specifications Length E
20.36 in | 517 mm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Bore Size
11.75 in | 298 mm
Specifications Outer Diameter Length F
44.50 in | 1130 mm
Specifications Pilot Diameter B
16.5 in | 419 mm
Specifications Plt Thickness
1.61 in | 41 mm
