The Wichita Clutch HSD Mesur-Fil Fluid Coupling is a reliable solution for minimizing overhung loads in parallel shaft applications. Available in various sizes, this fluid coupling offers easy installation with a slotted collet or center locating bolt. With precision dimensions to fit NEMA B motor shafts, this coupling includes input and output groups, along with a customer-supplied QD type sheave for seamless integration. Designed for efficiency and durability, the Wichita Clutch HSD Fluid Coupling ensures smooth power transmission for your industrial needs.
Product Specifications
Note 0
Do not use Eaton QD sheaves.Bolt pattern is not the same.

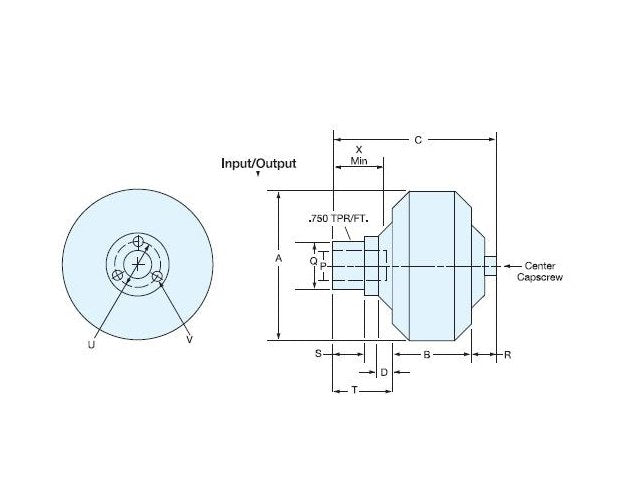

Specifications Bore Size
1-3/8 in
Specifications Casting On Housing
216262 A | 216405 A
Specifications Dimension A
7.81 in
Specifications Dimension B
3.67 in
Specifications Dimension C
7.05 in
Specifications Dimension D
0.56 in
Specifications Dimension Q
2.149 in
Specifications Dimension R
0.84 in
Specifications Dimension S
1.15 in
Specifications Dimension T
2.54 in
Specifications Dimension U
2.687 in
Specifications Dimension V
1/2-20 in
Specifications Dimension X
2.00 in
Specifications Key
5/16
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Speed
3600 rpm
Specifications Q D Hub Size
SD
Specifications Size
7.0
Specifications Weight Less Oil
12.75
Tolerance 0
Dimension Dup to 2 inch: +0.001/-0.000from 2 to 4 inch: +0.0015/-0.000Dimension W up to 0.500 inch: +0.002/-0.000from 0.625 to 1 inch: +0.003/-0.000
