Wichita Clutch HSD Mesur-Fil Fluid Coupling
Wichita Clutch HSD Mesur-Fil Fluid Coupling
SKU:FLE-eedbd9
Reliable Wichita Clutch fluid coupling for parallel shaft applications, easy installation, precise tolerances, and high-speed compatibility.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Wichita Clutch HSD Mesur-Fil Fluid Coupling
$299.99
Quantity: 1
Claim Your Seller Account
Wichita Clutch HSD Mesur-Fil Fluid Coupling
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Clutch HSD Mesur-Fil Fluid Coupling is a versatile solution for parallel shaft applications, offering minimal overhung loads and easy installation without the need for drilling or tapping in smaller sizes. This fluid coupling includes a basic fluid coupling, input and output group, and is compatible with standard NEMA B motor shaft dimensions. Larger sizes feature a center locating bolt for secure mounting. With maximum speed of 3600 rpm and precise tolerances, this coupling ensures reliable performance for various industrial needs.
Product Specifications
Note 0
Do not use Eaton QD sheaves.Bolt pattern is not the same.

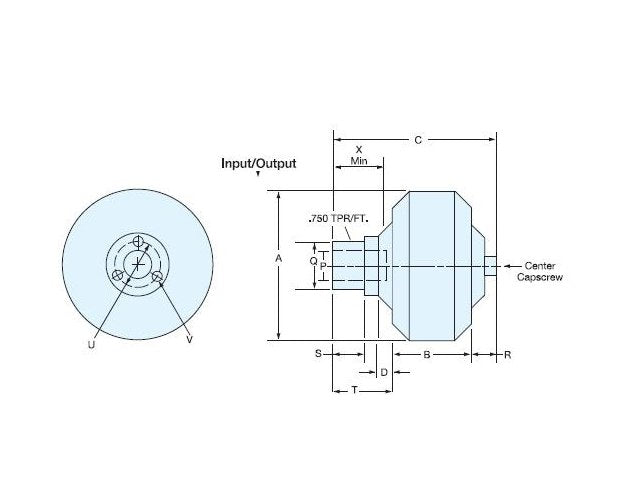

Specifications Bore Size
1-1/8 in
Specifications Casting On Housing
216262 A | 216405 A
Specifications Dimension A
7.81 in
Specifications Dimension B
3.67 in
Specifications Dimension C
7.05 in
Specifications Dimension D
0.56 in
Specifications Dimension Q
2.149 in
Specifications Dimension R
0.84 in
Specifications Dimension S
1.15 in
Specifications Dimension T
2.54 in
Specifications Dimension U
2.687 in
Specifications Dimension V
1/2-20 in
Specifications Dimension X
2.00 in
Specifications Key
1/4
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Speed
3600 rpm
Specifications Q D Hub Size
SD
Specifications Size
7.0
Specifications Weight Less Oil
12.75
Tolerance 0
Dimension Dup to 2 inch: +0.001/-0.000from 2 to 4 inch: +0.0015/-0.000Dimension W up to 0.500 inch: +0.002/-0.000from 0.625 to 1 inch: +0.003/-0.000
