The Wichita Clutch Model HSD Mesur-Fil Fluid Coupling is designed for efficient power transmission in belt-driven shaft applications, offering minimal overhung loads and easy installation. Available in various sizes, it features a slotted collet for quick mounting without the need for drilling or tapping. Larger sizes require a center locating bolt for secure mounting. This fluid coupling, with standard NEMA B motor shaft dimensions, includes an input and output group and accepts customer-supplied QD type sheaves, ensuring reliable performance and durability.
Product Specifications
Specifications Bore Size
1 in
Specifications Casting On Housing
216262 A | 216405 A

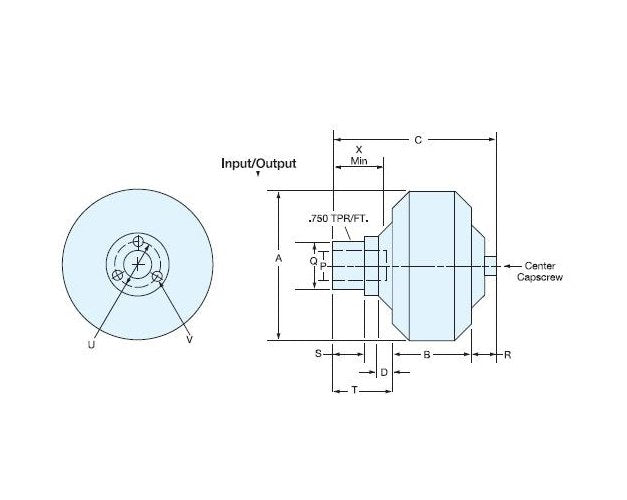

Specifications Dimension A
7.81 in
Specifications Dimension B
3.67 in
Specifications Dimension C
7.05 in
Specifications Dimension D
0.56 in
Specifications Dimension Q
2.149 in
Specifications Dimension R
0.84 in
Specifications Dimension S
1.15 in
Specifications Dimension T
2.54 in
Specifications Dimension U
2.687 in
Specifications Dimension V
1/2-20 in
Specifications Dimension X
2.00 in
Specifications Key
1/4
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Speed
3600 rpm
Specifications Q D Hub Size
SD
Specifications Size
7.0
Specifications Weight Less Oil
12.75
Tolerance 0
Dimension Dup to 2 inch: +0.001/-0.000from 2 to 4 inch: +0.0015/-0.000Dimension W up to 0.500 inch: +0.002/-0.000from 0.625 to 1 inch: +0.003/-0.000
