The Wichita Clutch Model HSD Mesur-Fil Fluid Coupling in size 12.4 offers exceptional performance for parallel shaft applications with minimal overhung loads. Install quickly and easily with a slotted collet designed for standard NEMA B motor shaft dimensions. Larger sizes (15-24) include a center locating bolt for secure mounting. This fluid coupling features a customer-supplied QD type sheave mounted on a coupling at the driveshaft end.
Product Specifications
Note 0
Do not use Eaton QD sheaves.Bolt pattern is not the same.

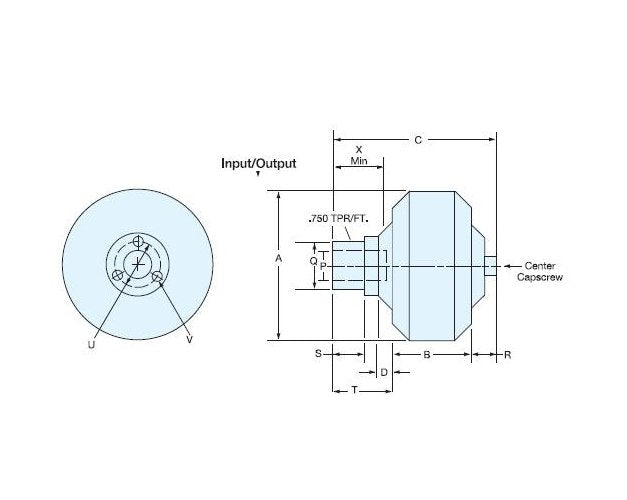

Specifications Bore Size
1-7/8 in
Specifications Casting On Housing
219463 A | 219464 A
Specifications Dimension A
13.50 in
Specifications Dimension B
5.98 in
Specifications Dimension C
12.12 in
Specifications Dimension D
0.82 in
Specifications Dimension Q
3.736 in
Specifications Dimension R
1.24 in
Specifications Dimension S
1.87 in
Specifications Dimension T
4.90 in
Specifications Dimension U
5.000 in
Specifications Dimension V
1/2-13 in
Specifications Dimension X
3.00 in
Specifications Key
1/2
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Speed
1800 rpm
Specifications Q D Hub Size
E
Specifications Size
12.4
Specifications Weight Less Oil
68.00
Tolerance 0
Dimension Dup to 2 inch: +0.001/-0.000from 2 to 4 inch: +0.0015/-0.000Dimension W up to 0.500 inch: +0.002/-0.000from 0.625 to 1 inch: +0.003/-0.000
