Wichita Clutch Model HSD Mesur-Fil Fluid Coupling
Wichita Clutch Model HSD Mesur-Fil Fluid Coupling
SKU:FLE-10c986
Efficient, durable, and easy-to-install fluid coupling for parallel shaft applications. Meets industry standards for reliable performance.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Wichita Clutch Model HSD Mesur-Fil Fluid Coupling
$1,299.99
Quantity: 1
Claim Your Seller Account
Wichita Clutch Model HSD Mesur-Fil Fluid Coupling
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Clutch Model HSD Mesur-Fil Fluid Coupling is designed for efficient power transmission in parallel shaft applications. Easy to install with minimal overhung loads, this coupling features various dimensions including a 3-3/8 inch bore size and 7.50-gallon maximum oil volume. With precise manufacturing meeting industry standards, this fluid coupling ensures reliable performance and longevity.
Ready to Grow Without Cash Flow Constraints?

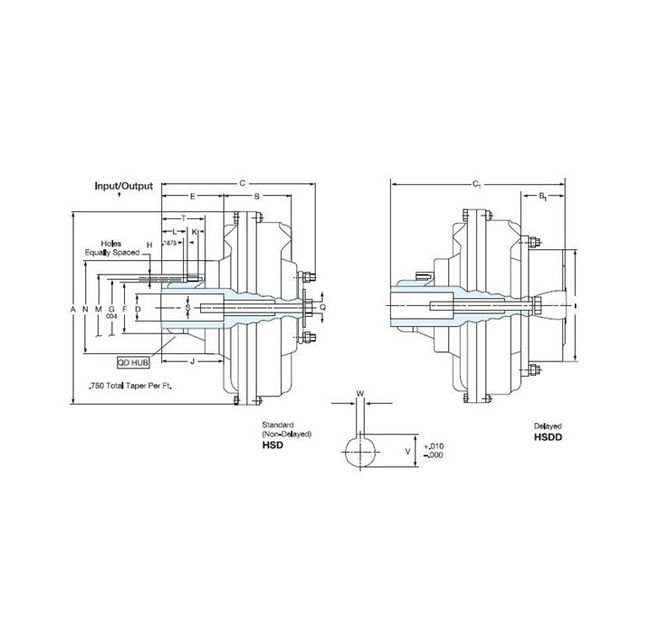

Product Specifications
Note 0
Maximum Bore
Specifications Bore Size
3-3/8 in
Specifications Dimension A
27.953 in
Specifications Dimension B
9.015 in
Specifications Dimension B1
4.528 in
Specifications Dimension C1
24.408 in
Specifications Dimension D
3.875 in
Specifications Dimension E
10.866 in
Specifications Dimension F
6.500 in
Specifications Dimension G
7.875 in
Specifications Dimension I
15.748 in
Specifications Dimension J
8.500 in
Specifications Dimension K
1.575 in
Specifications Dimension L
7.085 in
Specifications Dimension M
9.00 in
Specifications Dimension N
10.394 in
Specifications Dimension Q
1-1/4 7 UNC
Specifications Dimension S
7/8 9 UNC
Specifications Dimension T
11.024 in
Specifications Dimension V
4.314 in
Specifications Dimension W
1.000 in
Specifications H Diameter
3/4 10 UNC
Specifications Less Oil Weight
307 lb
Specifications Manufacturer
Wichita Clutch
Specifications Maximum C
21.456 in
Specifications Maximum Oil Volume
7.50 gal
Specifications Nr H
4
Specifications Q D Hub Size
M
Specifications Size
24
Tolerance 0
Dimension Dup to 2 inch: +0.001/-0.000from 2 to 4 inch: +0.0015/-0.000Dimension W up to 0.500 inch: +0.002/-0.000from 0.625 to 1 inch: +0.003/-0.000
