The Wichita Clutch Model HSD Mesur-Fil Fluid Coupling is a precision-engineered solution perfect for institutional and industrial applications. Designed for minimal overhung loads in parallel shaft setups, this coupling features sizes ranging from 7 to 24, accommodating various bore sizes and dimensions. The quick installation of smaller sizes (7-12.4) with a slotted collet makes it hassle-free, while the larger sizes (15-24) come with a center locating bolt option. With a sturdy construction and compatibility with standard NEMA B motor shaft dimensions, this fluid coupling ensures reliable performance and efficient power transmission. Ideal for applications demanding high speeds up to 1800 rpm, this coupling is a reliable choice for demanding industrial environments.
Product Specifications
Note 0
Do not use Eaton QD sheaves.Bolt pattern is not the same.

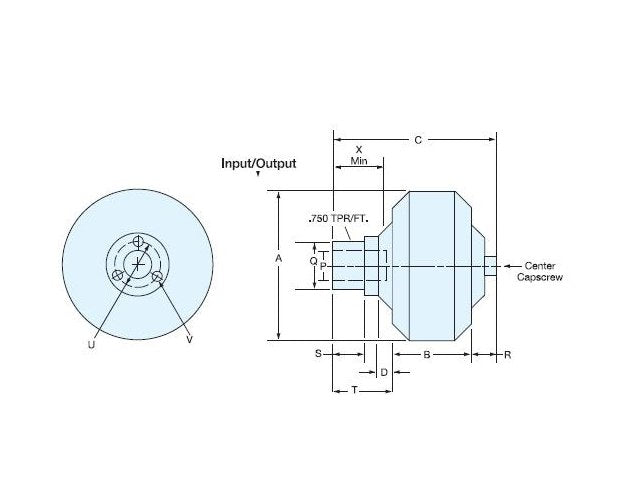

Specifications Bore Size
2-3/8 in
Specifications Casting On Housing
219463 A | 219464 A
Specifications Dimension A
13.50 in
Specifications Dimension B
5.98 in
Specifications Dimension C
12.12 in
Specifications Dimension D
0.82 in
Specifications Dimension Q
3.736 in
Specifications Dimension R
1.24 in
Specifications Dimension S
1.87 in
Specifications Dimension T
4.90 in
Specifications Dimension U
5.000 in
Specifications Dimension V
1/2-13 in
Specifications Dimension X
3.00 in
Specifications Key
5/8
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Speed
1800 rpm
Specifications Q D Hub Size
E
Specifications Size
12.4
Specifications Weight Less Oil
68.00
Tolerance 0
Dimension Dup to 2 inch: +0.001/-0.000from 2 to 4 inch: +0.0015/-0.000Dimension W up to 0.500 inch: +0.002/-0.000from 0.625 to 1 inch: +0.003/-0.000
