The Wichita Clutch Model HSD Mesur-Fil Fluid Coupling is designed for efficient power transmission in parallel shaft applications. Featuring sizes ranging from 15 to 24, it offers easy installation with both slotted collet and center locating bolt options. This fluid coupling comes complete with input and output groups along with a customer-supplied sheave, providing a reliable solution for demanding industrial environments.

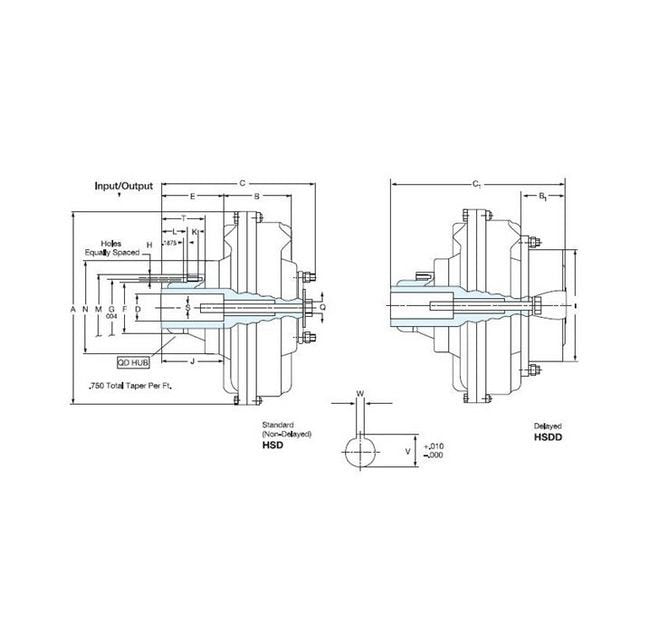

Product Specifications
Note 0
HSDD
Specifications Bore Size
2-3/8 in
Specifications Dimension A
18.110 in
Specifications Dimension B
5.945 in
Specifications Dimension B1
3.425 in
Specifications Dimension C1
17.244 in
Specifications Dimension D
2.375 in
Specifications Dimension E
7.677 in
Specifications Dimension F
4.4375 in
Specifications Dimension G
5.625 in
Specifications Dimension I
10.039 in
Specifications Dimension J
5.625 in
Specifications Dimension K
1.181 in
Specifications Dimension L
3.397 in
Specifications Dimension M
6.663 in
Specifications Dimension N
8.032 in
Specifications Dimension Q
7/8 9 UNC
Specifications Dimension S
3/4 10 UNC
Specifications Dimension T
6.362 in
Specifications Dimension V
2.651 in
Specifications Dimension W
0.625 in
Specifications H Diameter
9/16 12 UNC
Specifications Less Oil Weight
115.8 lb
Specifications Manufacturer
Wichita Clutch
Specifications Maximum C
15.118 in
Specifications Maximum Oil Volume
2.27 gal
Specifications Nr H
3
Specifications Q D Hub Size
F
Specifications Size
15
Tolerance 0
Dimension Dup to 2 inch: +0.001/-0.000from 2 to 4 inch: +0.0015/-0.000Dimension W up to 0.500 inch: +0.002/-0.000from 0.625 to 1 inch: +0.003/-0.000
