The Wichita Clutch Model HSD Mesur-Fil Fluid Coupling is a precision-engineered solution designed for seamless integration with motor shafts, offering minimal overhung loads for parallel shaft applications. Available in various sizes, from easy-to-install smaller options with slotted collet technology to larger sizes requiring center locating bolts, this fluid coupling ensures efficient power transmission. Built with durable materials and precision engineering, it includes standard customer-supplied QD type sheaves for added versatility. With accurate bore sizes, NEMA B motor shaft dimensions, and maximum speeds of up to 2600 rpm, the Wichita Clutch Model HSD Mesur-Fil Fluid Coupling guarantees reliable performance in demanding industrial environments.
Product Specifications
Note 0
Do not use Eaton QD sheaves.Bolt pattern is not the same.

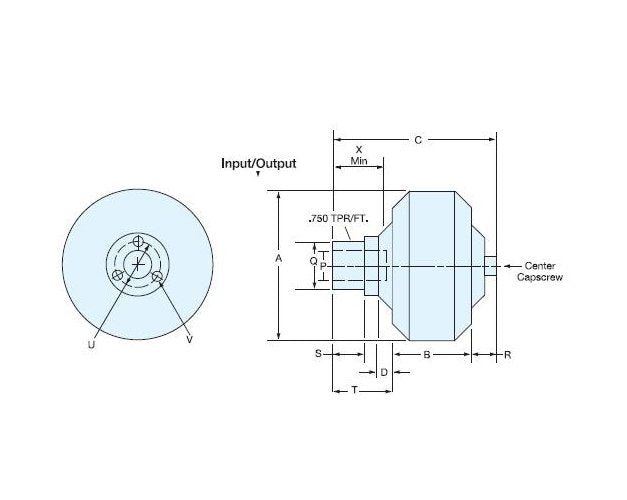

Specifications Bore Size
1-3/8 in
Specifications Casting On Housing
216438 A | 216439 A
Specifications Dimension A
10.25 in
Specifications Dimension B
4.70 in
Specifications Dimension C
9.35 in
Specifications Dimension D
0.77 in
Specifications Dimension Q
2.736 in
Specifications Dimension R
1.12 in
Specifications Dimension S
1.45 in
Specifications Dimension T
3.53 in
Specifications Dimension U
3.313 in
Specifications Dimension V
5/16-18 in
Specifications Dimension X
2.50 in
Specifications Key
5/16
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Speed
2600 rpm
Specifications Q D Hub Size
SK
Specifications Size
9.4
Specifications Weight Less Oil
37.75
Tolerance 0
Dimension Dup to 2 inch: +0.001/-0.000from 2 to 4 inch: +0.0015/-0.000Dimension W up to 0.500 inch: +0.002/-0.000from 0.625 to 1 inch: +0.003/-0.000
