The Wichita Clutch Model HSD Mesur-Fil Fluid Coupling is a high-quality hydro-sheave coupling designed for parallel shaft applications with minimal overhung loads. Available in sizes up to 12.4, it features easy installation with a slotted collet for smaller sizes and a center locating bolt for larger ones. This fluid coupling includes input and output groups, designed to work seamlessly with standard NEMA B motor shaft dimensions. With a durable construction and precise specifications, the Model HSD ensures reliable performance in various industrial settings.
Product Specifications
Note 0
Do not use Eaton QD sheaves.Bolt pattern is not the same.

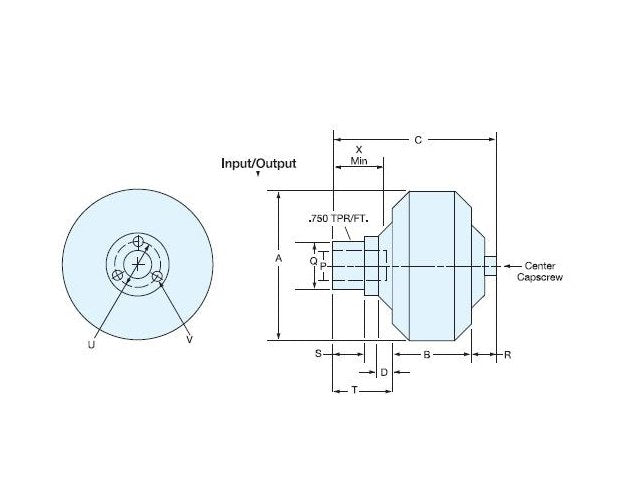

Specifications Bore Size
1-5/8 in
Specifications Casting On Housing
219463 A | 219464 A
Specifications Dimension A
13.50 in
Specifications Dimension B
5.98 in
Specifications Dimension C
12.12 in
Specifications Dimension D
0.82 in
Specifications Dimension Q
3.736 in
Specifications Dimension R
1.24 in
Specifications Dimension S
1.87 in
Specifications Dimension T
4.90 in
Specifications Dimension U
5.000 in
Specifications Dimension V
1/2-13 in
Specifications Dimension X
3.00 in
Specifications Key
3/8
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Speed
1800 rpm
Specifications Q D Hub Size
E
Specifications Size
12.4
Specifications Weight Less Oil
68.00
Tolerance 0
Dimension Dup to 2 inch: +0.001/-0.000from 2 to 4 inch: +0.0015/-0.000Dimension W up to 0.500 inch: +0.002/-0.000from 0.625 to 1 inch: +0.003/-0.000
