Wichita Clutch Model HSD Mesur-Fil Fluid Coupling 9.4

Name: Wichita Clutch Model HSD Mesur-Fil Fluid Coupling 9.4
Brand: Clutch Engineering
SKU: FLE-8083d5
Price: 599.99 USD
Availability: OutOfStock

SKU:FLE-8083d5

Efficient fluid coupling for parallel shaft applications with easy installation and high-speed performance.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wichita Clutch Model HSD Mesur-Fil Fluid Coupling 9.4 is a reliable solution for parallel shaft applications, offering easy installation with minimal overhung loads. With a bore size of 1-1/8 inches and dimensions designed to fit standard NEMA B motor shafts, this fluid coupling guarantees efficient power transmission. The precision engineering ensures optimum performance at speeds up to 2600 rpm. Whether for consumer or institutional use, this fluid coupling delivers durability and seamless operation.

Product Specifications

Note 0

Do not use Eaton QD sheaves.Bolt pattern is not the same.

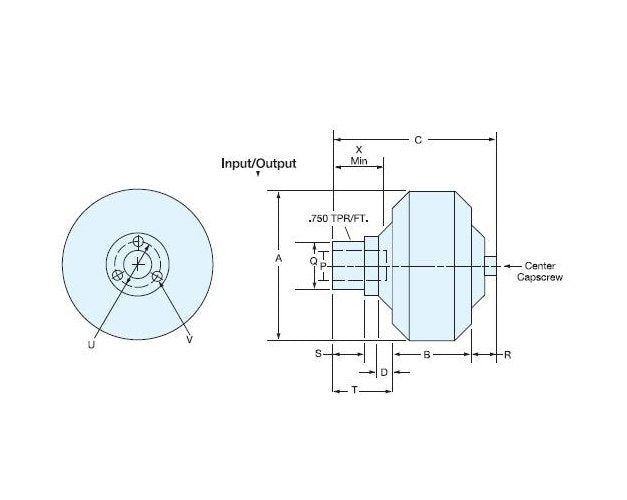

Specifications Bore Size

1-1/8 in

Specifications Casting On Housing

216438 A | 216439 A

Specifications Dimension A

10.25 in

Specifications Dimension B

4.70 in

Specifications Dimension C

9.35 in

Specifications Dimension D

0.77 in

Specifications Dimension Q

2.736 in

Specifications Dimension R

1.12 in

Specifications Dimension S

1.45 in

Specifications Dimension T

3.53 in

Specifications Dimension U

3.313 in

Specifications Dimension V

5/16-18 in

Specifications Dimension X

2.50 in

Specifications Key

1/4

Specifications Manufacturer

Wichita Clutch

Specifications Maximum Speed

2600 rpm

Specifications Q D Hub Size

Specifications Size

9.4

Specifications Weight Less Oil

37.75

Tolerance 0

Dimension Dup to 2 inch: +0.001/-0.000from 2 to 4 inch: +0.0015/-0.000Dimension W up to 0.500 inch: +0.002/-0.000from 0.625 to 1 inch: +0.003/-0.000
