The Wichita Clutch Model HSD Mesur-Fil Fluid Coupling 9.4 is a versatile solution for parallel shaft applications, offering minimal overhung loads. Featuring easy and quick installation for sizes 7-12.4 with a slotted collet requiring no drilling, and a center locating bolt for larger sizes 15-24. This fluid coupling, complete with input and output group, and compatible with customer's QD type sheave, is designed for efficiency and precision, meeting the high standards of industrial operations.
Product Specifications
Note 0
Do not use Eaton QD sheaves.Bolt pattern is not the same.

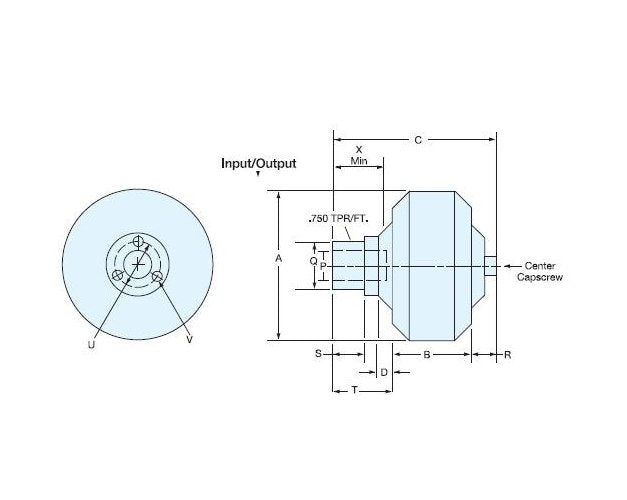

Specifications Bore Size
1-5/8 in
Specifications Casting On Housing
216438 A | 216439 A
Specifications Dimension A
10.25 in
Specifications Dimension B
4.70 in
Specifications Dimension C
9.35 in
Specifications Dimension D
0.77 in
Specifications Dimension Q
2.736 in
Specifications Dimension R
1.12 in
Specifications Dimension S
1.45 in
Specifications Dimension T
3.53 in
Specifications Dimension U
3.313 in
Specifications Dimension V
5/16-18 in
Specifications Dimension X
2.50 in
Specifications Key
3/8
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Speed
2600 rpm
Specifications Q D Hub Size
SK
Specifications Size
9.4
Specifications Weight Less Oil
37.75
Tolerance 0
Dimension Dup to 2 inch: +0.001/-0.000from 2 to 4 inch: +0.0015/-0.000Dimension W up to 0.500 inch: +0.002/-0.000from 0.625 to 1 inch: +0.003/-0.000
