Wichita Kopper Kool Tension Brake - High Heat Capacity
$2,950.00
Quantity: 1
Claim Your Seller Account
Wichita Kopper Kool Tension Brake - High Heat Capacity
$2,950.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Kopper Kool Tension Brake offers exceptional heat dissipation with its copper disc design, ideal for applications requiring accurate control and continuous slip action for consistent web tensioning. Featuring copper alloy wear plates for enhanced heat transfer, reinforced neoprene air-tube for durability, and options for long stroke air tube to prolong service life. With a dynamic torque rating of up to 10800 lb.in and high thermal capacity, this tension brake ensures reliable performance under high-demand conditions.
Product Specifications
Design Features 0
New friction material lasts longer with less wear on mating copper.Copper alloy wear plates increase heat transfer.Hub spline provides perfect alignment of rotating discs.External air & water connections.Release springs ensure complete disengagement.High strength reinforced neoprene air-tube offers long service life.Optional long stroke air tube available on 18" or 24" size units to increase life and standard maintenance intervals.High thermal capacity.
Note 0
Maximum water jacket inlet pressure is 60 PSI. Brakes with as great as 50 % higher torque capacity is available upon request.For mounting, use socket head capscrews conforming to the ASTM-574-97a.
Specifications Actuation
Air Applied
Specifications Assembly Number
7-308-210-100-0

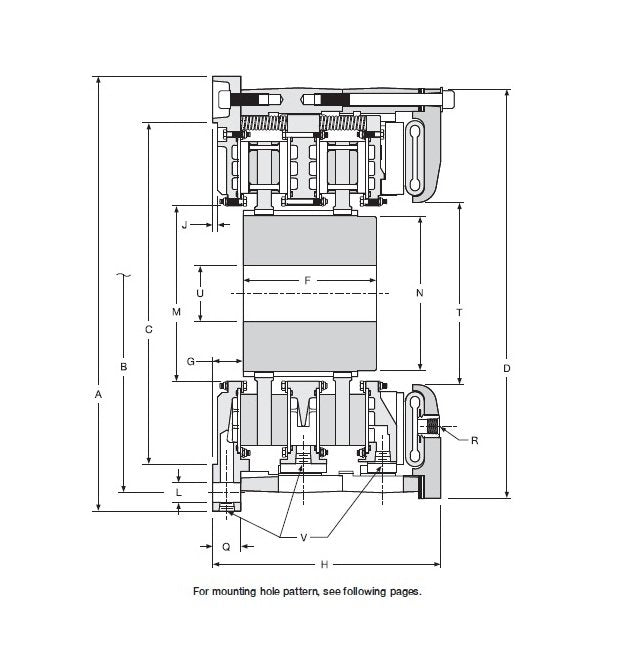

Specifications Bolt Hole Circle Diameter B
11.125 in | 282.58 mm
Specifications Bolt Hole Size L
17/32 in | 13.5 mm
Specifications Dimension D
11.75 in | 288.5 mm
Specifications Dimension F
4.25 in | 108 mm
Specifications Dimension G
1.13 in | 28.7 mm
Specifications Dimension H
8.43 in | 214.1 mm
Specifications Dimension J
0.25 in | 6.4 mm
Specifications Dimension M
4.38 in | 111.3 mm
Specifications Dimension N
3.50 in | 88.9 mm
Specifications Dimension Q
1.38 in | 35.1 mm
Specifications Dimension T
3.75 in | 95.3 mm
Specifications Disc Gear Inertia
1.3 lb·ft² | 0.05 kg·m²
Specifications Disc Gear Weight
25 lb | 11.1 kg
Specifications Dynamic Torque Rating 100 Psi7 Bar
10800 lb.in | 1220 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
8640 lb.in | 959 Nm
Specifications Heat Capacity For Parallel Water Hosing
64 hp | 48 kW
Specifications Heat Capacity For Series Water Hosing
42 hp | 31 kW
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Bore Size
2.25 in | 57 mm
Specifications Maximum Lining Wear
0.4 in | 1.0 cm | 10 in³ | 0.2 dm³
Specifications Maximum U
2.25 in | 57.2 mm
Specifications Minimum U
1.00 in | 25.4 mm
Specifications Number Of Bolt Holes
4
Specifications Number Of Coolant Inlets Thread Size
3 - 3/8 NPT
Specifications Number Of Inlet Ports Thread Size
2- 1/2 NPT
Specifications Parallel Water Flow 0 Ethylene Glycol
6.4 gpm | 24 lpm
Specifications Parallel Water Flow 30 Ethylene Glycol
8.2 gpm | 32 lpm
Specifications Parallel Water Flow 50 Ethylene Glycol
10 gpm | 38 lpm
Specifications Pilot Diameter A
12.125/12.128 in | 307.98/308.05 mm
Specifications Pilot Diameter C
8.375/8.378 in | 212.73/212.80 mm
Specifications Pressure Drop Series Flow With 0 Ethylene Glycol
11 psi | 0.76 bar
Specifications Pressure Drop Series Flow With 30 Ethylene Glycol
25 psi | 1.72 bar
Specifications Pressure Drop Series Flow With 50 Ethylene Glycol
32 psi | 2.21 bar
Specifications Total Brake Weight
116 lb | 52.6 kg
Specifications Water Volume
16 in³ | 0.26 dm³
