Wichita Kopper Kool Tension Brake - High Heat Capacity
Wichita Kopper Kool Tension Brake - High Heat Capacity
SKU:CLU-ab446b
Achieve precise control and high heat dissipation with the Wichita Kopper Kool Tension Brake - ideal for constant web tensioning in industrial applications.
Regular price
$5,599.99
Regular price
Sale price
$5,599.99
Unit price
per
Initiate Order
Wichita Kopper Kool Tension Brake - High Heat Capacity
$5,599.99
Quantity: 1
Claim Your Seller Account
Wichita Kopper Kool Tension Brake - High Heat Capacity
$5,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Kopper Kool Tension Brake features a copper disc design for superior heat dissipation, ensuring accurate control and consistent web tensioning. These liquid-cooled brakes offer a durable construction with copper alloy wear plates for enhanced heat transfer, making them ideal for high-demand applications. With a dynamic torque rating of up to 600,000 lb.in, parallel water hosing options, and high thermal capacity, this brake unit is designed to meet the stringent requirements of industrial operations, providing reliable performance even under extreme conditions.
Product Specifications
Design Features 0
New friction material lasts longer with less wear on mating copper.Copper alloy wear plates increase heat transfer.Hub spline provides perfect alignment of rotating discs.External air & water connections.Release springs ensure complete disengagement.High strength reinforced neoprene air-tube offers long service life.Optional long stroke air tube available on 18" or 24" size units to increase life and standard maintenance intervals.High thermal capacity.
Note 0
Maximum water jacket inlet pressure is 60 PSI. Brakes with as great as 50 % higher torque capacity is available upon request.For mounting, use socket head capscrews conforming to the ASTM-574-97a.
Specifications Actuation
Air Applied
Specifications Assembly Number
7-330-310-300-0

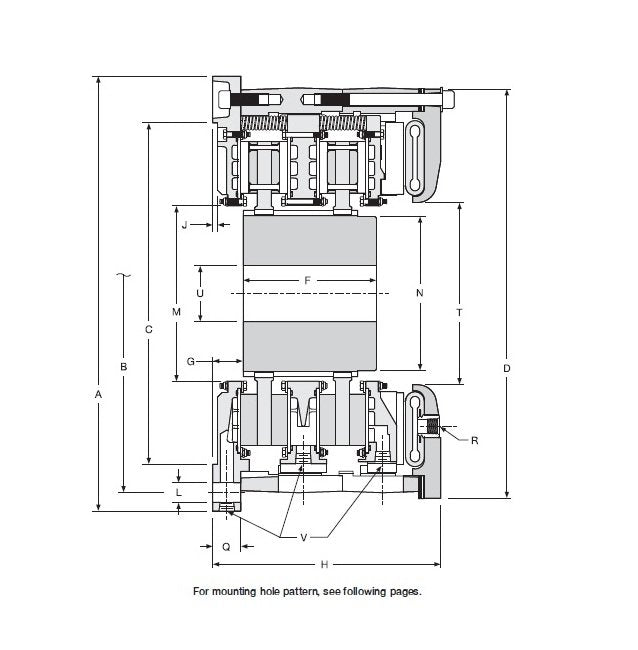

Specifications Bolt Hole Circle Diameter B
35.500 in | 901.7 mm
Specifications Bolt Hole Size L
25/32 in | 19.8 mm
Specifications Dimension D
34.75 in | 882.7 mm
Specifications Dimension F
13.88 in | 352.6 mm
Specifications Dimension G
1.38 in | 35.1 mm
Specifications Dimension H
19.00 in | 482.6 mm
Specifications Dimension J
0.25 in | 6.4 mm
Specifications Dimension M
15.75 in | 400.1 mm
Specifications Dimension N
14.25 in | 362 mm
Specifications Dimension Q
2.00 in | 50.8 mm
Specifications Dimension T
17.38 in | 441.5 mm
Specifications Disc Gear Inertia
410 lb·ft² | 17.28 kg·m²
Specifications Disc Gear Weight
795 lb | 361 kg
Specifications Dynamic Torque Rating 100 Psi7 Bar
600000 lb.in | 67789 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
480000 lb.in | 53263 Nm
Specifications Heat Capacity For Parallel Water Hosing
1035 hp | 772 kW
Specifications Heat Capacity For Series Water Hosing
690 hp | 515 kW
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Bore Size
9.00 in | 229 mm
Specifications Maximum Lining Wear
0.8 in | 2.0 cm | 240 in³ | 3.9 dm³
Specifications Maximum U
9.00 in | 228.6 mm
Specifications Minimum U
2.50 in | 63.5 mm
Specifications Number Of Bolt Holes
16
Specifications Number Of Coolant Inlets Thread Size
6 - 1 NPT
Specifications Number Of Inlet Ports Thread Size
4- 1/2 NPT
Specifications Parallel Water Flow 0 Ethylene Glycol
105 gpm | 396 lpm
Specifications Parallel Water Flow 30 Ethylene Glycol
135 gpm | 510 lpm
Specifications Parallel Water Flow 50 Ethylene Glycol
162 gpm | 612 lpm
Specifications Pilot Diameter A
36.997/37.000 in | 939.72/939.80 mm
Specifications Pilot Diameter C
30.375/30.378 in | 771.53/771.60 mm
Specifications Pressure Drop Series Flow With 0 Ethylene Glycol
40 psi | 2.76 bar
Specifications Total Brake Weight
2565 lb | 1163 kg
Specifications Water Volume
570 in³ | 9.3 dm³
