Wichita Kopper Kool Tension Brakes
$3,799.00
Quantity: 1
Claim Your Seller Account
Wichita Kopper Kool Tension Brakes
$3,799.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Kopper Kool Tension Brakes offer exceptional heat dissipation with a copper disc design, ensuring accurate control and continuous slip action for precise web tensioning. Featuring high thermal capacity and reinforced neoprene air-tube for longevity, these brakes are designed with copper alloy wear plates and release springs for optimal performance. With dynamic torque ratings up to 16200 lb.in, these brakes are reliable for industrial applications where heat management and precise tension control are paramount.
Product Specifications
Design Features 0
New friction material lasts longer with less wear on mating copper.Copper alloy wear plates increase heat transfer.Hub spline provides perfect alignment of rotating discs.External air & water connections.Release springs ensure complete disengagement.High strength reinforced neoprene air-tube offers long service life.Optional long stroke air tube available on 18" or 24" size units to increase life and standard maintenance intervals.High thermal capacity.
Note 0
Maximum water jacket inlet pressure is 60 PSI. Brakes with as great as 50 % higher torque capacity is available upon request.For mounting, use socket head capscrews conforming to the ASTM-574-97a.
Specifications Actuation
Air Applied
Specifications Assembly Number
7-308-310-101-0

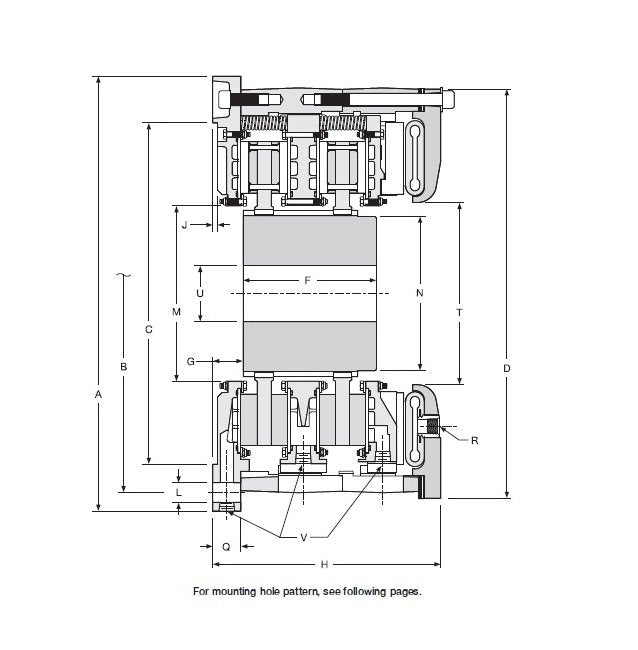

Specifications Bolt Hole Circle Diameter B
11.125 in | 282.58 mm
Specifications Bolt Hole Size L
17/32 in | 13.5 mm
Specifications Dimension D
11.75 in | 288.5 mm
Specifications Dimension F
7.00 in | 177.8 mm
Specifications Dimension G
1.13 in | 28.7 mm
Specifications Dimension H
11.12 in | 282.4 mm
Specifications Dimension J
0.25 in | 6.4 mm
Specifications Dimension M
4.38 in | 111.3 mm
Specifications Dimension N
3.50 in | 88.9 mm
Specifications Dimension Q
1.38 in | 35.1 mm
Specifications Dimension T
3.75 in | 95.3 mm
Specifications Disc Gear Inertia
2 lb·ft² | 0.08 kg·m²
Specifications Disc Gear Weight
38 lb | 17.2 kg
Specifications Dynamic Torque Rating 100 Psi7 Bar
16200 lb.in | 1830 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
12960 lb.in | 1438 Nm
Specifications Heat Capacity For Parallel Water Hosing
96 hp | 72 kW
Specifications Heat Capacity For Series Water Hosing
63 hp | 47 kW
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Bore Size
2.25 in | 57 mm
Specifications Maximum Lining Wear
0.4 in | 1.0 cm | 10 in³ | 0.2 dm³
Specifications Maximum U
2.25 in | 57.2 mm
Specifications Minimum U
1.00 in | 25.4 mm
Specifications Number Of Bolt Holes
4
Specifications Number Of Coolant Inlets Thread Size
4 - 3/8 NPT
Specifications Number Of Inlet Ports Thread Size
2- 1/2 NPT
Specifications Parallel Water Flow 0 Ethylene Glycol
9.6 gpm | 36 lpm
Specifications Parallel Water Flow 30 Ethylene Glycol
12.3 gpm | 48 lpm
Specifications Parallel Water Flow 50 Ethylene Glycol
15 gpm | 57 lpm
Specifications Pilot Diameter A
12.125/12.128 in | 307.98/308.05 mm
Specifications Pilot Diameter C
8.375/8.378 in | 212.80/212.73 mm
Specifications Pressure Drop Series Flow With 0 Ethylene Glycol
15 psi | 1.03 bar
Specifications Pressure Drop Series Flow With 30 Ethylene Glycol
34 psi | 2.34 bar
Specifications Pressure Drop Series Flow With 50 Ethylene Glycol
41 psi | 2.83 bar
Specifications Total Brake Weight
164 lb | 74.4 kg
Specifications Water Volume
24 in³ | 0.4 dm³
