The Wichita Kopper Kool Tension Brakes with Very High Heat Capacity are precision-engineered for exceptional heat dissipation, featuring copper alloy wear plates for enhanced heat transfer. Designed with a hub spline for perfect disc alignment, external air and water connections, and reinforced neoprene air-tube for longevity, these brakes offer reliable continuous slip action ensuring accurate and constant web tensioning. With high thermal capacity and optional long stroke air tube available, they provide superior performance in demanding industrial applications.
Product Specifications
Design Features 0
New friction material lasts longer with less wear on mating copper.Copper alloy wear plates increase heat transfer.Hub spline provides perfect alignment of rotating discs.External air & water connections.Release springs ensure complete disengagement.High strength reinforced neoprene air-tube offers long service life.Optional long stroke air tube available on 18" or 24" size units to increase life and standard maintenance intervals.High thermal capacity.
Note 0
Maximum water jacket inlet pressure is 60 PSI. Brakes with as great as 50 % higher torque capacity is available upon request.For mounting, use socket head capscrews conforming to the ASTM-574-97a.
Specifications Actuation
Air Applied
Specifications Assembly Number
7-318-210-100-0

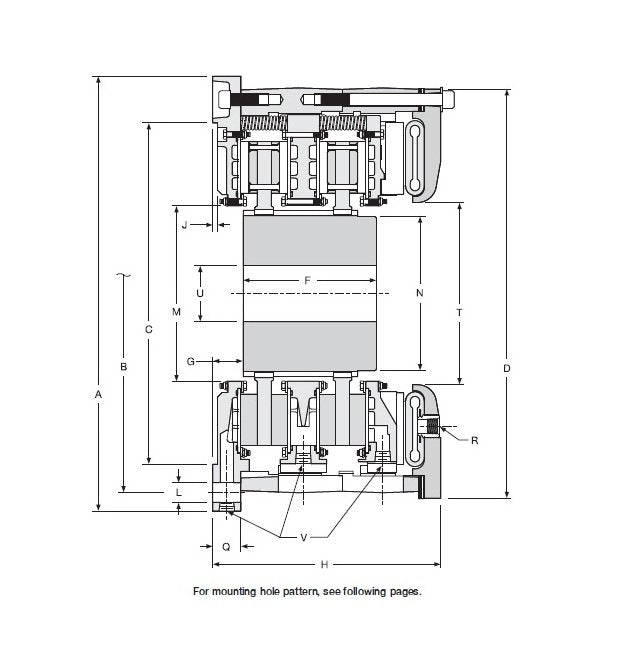

Specifications Bolt Hole Circle Diameter B
22.000 in | 558.80 mm
Specifications Bolt Hole Size L
21/32 in | 16.7 mm
Specifications Dimension D
21.88 in | 555.8 mm
Specifications Dimension F
7.13 in | 181.1 mm
Specifications Dimension G
1.63 in | 41.4 mm
Specifications Dimension H
12.19 in | 309.6 mm
Specifications Dimension J
0.25 in | 6.4 mm
Specifications Dimension M
9.38 in | 238.3 mm
Specifications Dimension N
8.25 in | 209.6 mm
Specifications Dimension Q
1.50 in | 38.1 mm
Specifications Dimension T
9.75 in | 247.7 mm
Specifications Disc Gear Inertia
36 lb·ft² | 1.52 kg·m²
Specifications Disc Gear Weight
176 lb | 79.8 kg
Specifications Dynamic Torque Rating 100 Psi7 Bar
10620 Nm | 94000 lb.in
Specifications Dynamic Torque Rating 80 Psi55 Bar
75200 lb.in | 8344 Nm
Specifications Heat Capacity For Parallel Water Hosing
240 hp | 179 kW
Specifications Heat Capacity For Series Water Hosing
160 hp | 119 kW
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Bore Size
5.50 in | 140 mm
Specifications Maximum Lining Wear
0.6 in | 1.5 cm | 75 in³ | 1.2 dm³
Specifications Maximum U
5.50 in | 139.7 mm
Specifications Minimum U
2.00 in | 50.8 mm
Specifications Number Of Bolt Holes
10
Specifications Number Of Coolant Inlets Thread Size
3 - 1/2 NPT
Specifications Number Of Inlet Ports Thread Size
3- 1/2 NPT
Specifications Parallel Water Flow 0 Ethylene Glycol
24 gpm | 90 lpm
Specifications Parallel Water Flow 30 Ethylene Glycol
32 gpm | 120 lpm
Specifications Parallel Water Flow 50 Ethylene Glycol
38 gpm | 144 lpm
Specifications Pilot Diameter A
23.247/23.250 in | 590.47/590.55 mm
Specifications Pilot Diameter C
18.253/18.250 in | 463.63/463.55 mm
Specifications Pressure Drop Series Flow With 0 Ethylene Glycol
52 psi | 3.59 bar
Specifications Total Brake Weight
565 lb | 256 kg
Specifications Water Volume
96 in³ | 1.5 dm³
