Wichita Kopper Kool Tension Brakes
$4,999.99
Quantity: 1
Claim Your Seller Account
Wichita Kopper Kool Tension Brakes
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Kopper Kool Tension Brakes are engineered with a copper disc design that excels in high heat dissipation, ensuring efficient continuous slip action for precise and constant web tensioning. These airtube disc clutches and brakes feature a pneumatic engagement mechanism that delivers accurate control. With design elements like copper alloy wear plates, reinforced neoprene air-tube, and high thermal capacity, these tension brakes offer long-lasting performance with minimal wear, making them ideal for industrial applications demanding reliable heat dissipation and tension control.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Design Features 0
New friction material lasts longer with less wear on mating copper.Copper alloy wear plates increase heat transfer.Hub spline provides perfect alignment of rotating discs.External air & water connections.Release springs ensure complete disengagement.High strength reinforced neoprene air-tube offers long service life.Optional long stroke air tube available on 18" or 24" size units to increase life and standard maintenance intervals.High thermal capacity.
Note 0
Maximum water jacket inlet pressure is 60 PSI. Brakes with as great as 50 % higher torque capacity is available upon request.For mounting, use socket head capscrews conforming to the ASTM-574-97a.
Specifications Actuation
Air Applied
Specifications Assembly Number
7-314-210-111-0
Specifications Bolt Hole Circle Diameter B
17.500 in | 444.50 mm
Specifications Bolt Hole Size L
21/32 in | 16.7 mm

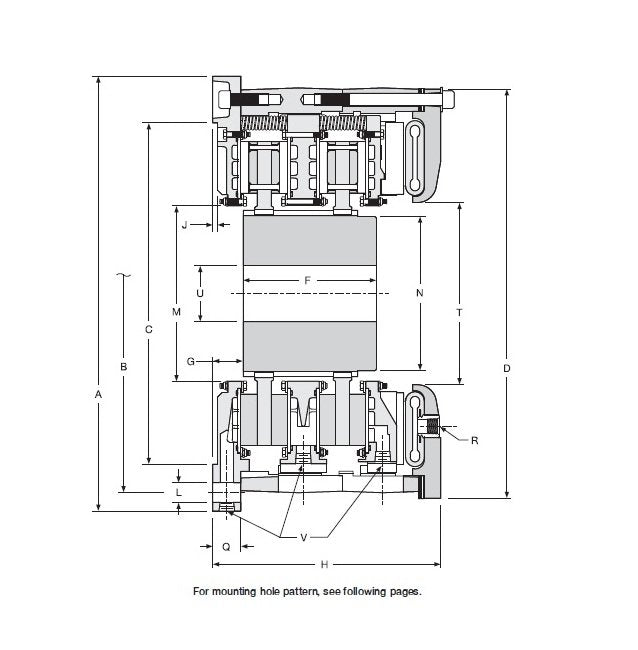

Specifications Dimension D
17.50 in | 444.5 mm
Specifications Dimension F
5.88 in | 149.4 mm
Specifications Dimension G
1.69 in | 42.9 mm
Specifications Dimension H
10.57 in | 268.5 mm
Specifications Dimension J
0.25 in | 6.4 mm
Specifications Dimension M
7.38 in | 187.5 mm
Specifications Dimension N
6.50 in | 165.1 mm
Specifications Dimension Q
1.50 in | 38.1 mm
Specifications Dimension T
7.00 in | 177.8 mm
Specifications Disc Gear Inertia
11 lb·ft² | 0.44 kg·m²
Specifications Disc Gear Weight
80 lb | 36 kg
Specifications Dynamic Torque Rating 100 Psi7 Bar
42000 lb.in | 4745 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
33600 lb.in | 3728 Nm
Specifications Heat Capacity For Parallel Water Hosing
150 hp | 112 kW
Specifications Heat Capacity For Series Water Hosing
100 hp | 75 kW
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Bore Size
4.38 in | 111 mm
Specifications Maximum Lining Wear
0.5 in | 1.3 cm | 60 in³ | 1.0 dm³
Specifications Maximum U
4.38 in | 111.3 mm
Specifications Minimum U
1.38 in | 35.1 mm
Specifications Number Of Bolt Holes
6
Specifications Number Of Coolant Inlets Thread Size
3 - 1/2 NPT
Specifications Number Of Inlet Ports Thread Size
2- 1/2 NPT
Specifications Parallel Water Flow 0 Ethylene Glycol
15 gpm | 57 lpm
Specifications Parallel Water Flow 30 Ethylene Glycol
20 gpm | 74 lpm
Specifications Parallel Water Flow 50 Ethylene Glycol
24 gpm | 90 lpm
Specifications Pilot Diameter A
18.747/18.750 in | 476.17/476.25 mm
Specifications Pilot Diameter C
14.375/14.378 in | 365.13/365.20 mm
Specifications Pressure Drop Series Flow With 0 Ethylene Glycol
24 psi | 1.66 bar
Specifications Pressure Drop Series Flow With 30 Ethylene Glycol
40 psi | 2.76 bar
Specifications Pressure Drop Series Flow With 50 Ethylene Glycol
52 psi | 3.59 bar
Specifications Total Brake Weight
345 lb | 156.5 kg
Specifications Water Volume
40 in³ | 0.65 dm³
