Wichita Kopper Kool Tension Brakes
Wichita Kopper Kool Tension Brakes
SKU:CLU-ba2d40
Experience precise control and superior heat dissipation with the Wichita Kopper Kool Tension Brakes for continuous slip action and constant web tensioning.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Wichita Kopper Kool Tension Brakes
$2,999.99
Quantity: 1
Claim Your Seller Account
Wichita Kopper Kool Tension Brakes
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Kopper Kool Tension Brakes offer exceptional performance with their liquid-cooled design and copper discs for superior heat dissipation. These airtube disc clutches and brakes provide precise control and continuous slip action, ensuring constant web tensioning. With features like wear-resistant friction material, high thermal capacity, and optional long stroke air tubes, these tension brakes are ideal for heavy-duty industrial applications requiring reliable and efficient performance.
Product Specifications
Design Features 0
New friction material lasts longer with less wear on mating copper.Copper alloy wear plates increase heat transfer.Hub spline provides perfect alignment of rotating discs.External air & water connections.Release springs ensure complete disengagement.High strength reinforced neoprene air-tube offers long service life.Optional long stroke air tube available on 18" or 24" size units to increase life and standard maintenance intervals.High thermal capacity.
Note 0
Maximum water jacket inlet pressure is 60 PSI. Brakes with as great as 50 % higher torque capacity is available upon request.For mounting, use socket head capscrews conforming to the ASTM-574-97a.
Specifications Actuation
Air Applied
Specifications Assembly Number
7-314-110-115-0

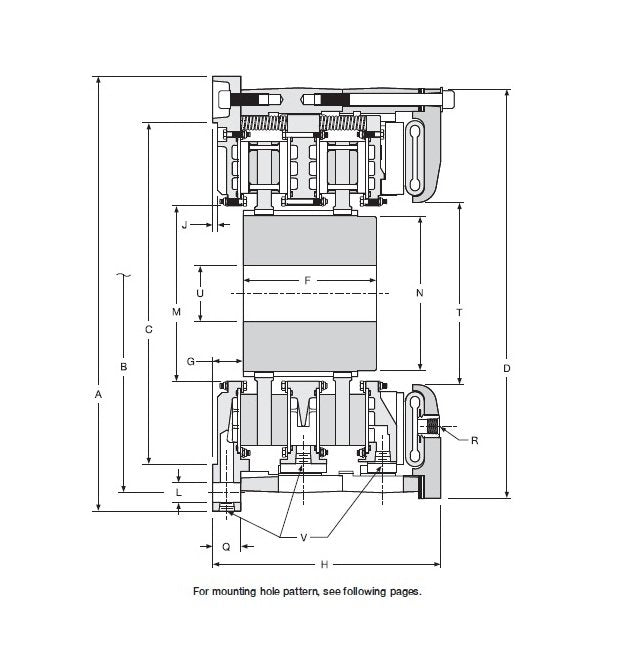

Specifications Bolt Hole Circle Diameter B
17.500 in | 444.50 mm
Specifications Bolt Hole Size L
21/32 in | 16.7 mm
Specifications Dimension D
17.50 in | 444.5 mm
Specifications Dimension F
3.25 in | 82.6 mm
Specifications Dimension G
1.06 in | 26.9 mm
Specifications Dimension H
7.00 in | 177.8 mm
Specifications Dimension J
0.25 in | 6.4 mm
Specifications Dimension M
7.38 in | 187.5 mm
Specifications Dimension N
6.50 in | 165.1 mm
Specifications Dimension Q
1.50 in | 38.1 mm
Specifications Dimension T
7.00 in | 177.8 mm
Specifications Disc Gear Inertia
5 lb·ft² | 0.21 kg·m²
Specifications Disc Gear Weight
40 lb | 18 kg
Specifications Dynamic Torque Rating 100 Psi7 Bar
21000 lb.in | 2373 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
16800 lb.in | 1864 Nm
Specifications Heat Capacity For Parallel Water Hosing
75 hp | 56 kW
Specifications Heat Capacity For Series Water Hosing
50 hp | 37 kW
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Bore Size
4.38 in | 111 mm
Specifications Maximum Lining Wear
0.5 in | 1.3 cm | 60 in³ | 1.0 dm³
Specifications Maximum U
4.38 in | 111.3 mm
Specifications Minimum U
1.38 in | 35.1 mm
Specifications Number Of Bolt Holes
6
Specifications Number Of Coolant Inlets Thread Size
2 - 1/2 NPT
Specifications Number Of Inlet Ports Thread Size
2- 1/2 NPT
Specifications Parallel Water Flow 0 Ethylene Glycol
7.5 gpm | 28 lpm
Specifications Parallel Water Flow 30 Ethylene Glycol
9.8 gpm | 37 lpm
Specifications Parallel Water Flow 50 Ethylene Glycol
12 gpm | 45 lpm
Specifications Pilot Diameter A
18.747/18.750 in | 476.17/476.25 mm
Specifications Pilot Diameter C
14.375/14.378 in | 365.13/365.20 mm
Specifications Pressure Drop Series Flow With 0 Ethylene Glycol
4 psi | 0.14 bar
Specifications Pressure Drop Series Flow With 30 Ethylene Glycol
8 psi | 0.55 bar
Specifications Pressure Drop Series Flow With 50 Ethylene Glycol
12 psi | 0.83 bar
Specifications Total Brake Weight
221 lb | 100.2 kg
Specifications Water Volume
20 in³ | 0.33 dm³
