Wichita Kopper Kool Tension Brakes
$2,899.99
Quantity: 1
Claim Your Seller Account
Wichita Kopper Kool Tension Brakes
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Kopper Kool Tension Brakes are designed for applications requiring very high heat capacity and precise control. These airtube disc clutches and brakes are liquid-cooled, featuring a unique copper disc design for superior heat dissipation. With copper alloy wear plates enhancing heat transfer and high-strength reinforced neoprene air-tube for durability, these brakes ensure accurate continuous slip action for consistent web tensioning. Offering exceptional thermal capacity and multiple torque rating options, the Wichita Kopper Kool Tension Brakes are ideal for industries demanding reliable and efficient tension control.
Product Specifications
Design Features 0
New friction material lasts longer with less wear on mating copper.Copper alloy wear plates increase heat transfer.Hub spline provides perfect alignment of rotating discs.External air & water connections.Release springs ensure complete disengagement.High strength reinforced neoprene air-tube offers long service life.Optional long stroke air tube available on 18" or 24" size units to increase life and standard maintenance intervals.High thermal capacity.
Note 0
Maximum water jacket inlet pressure is 60 PSI. Brakes with as great as 50 % higher torque capacity is available upon request.For mounting, use socket head capscrews conforming to the ASTM-574-97a.
Specifications Actuation
Air Applied
Specifications Assembly Number
7-311-310-100-0

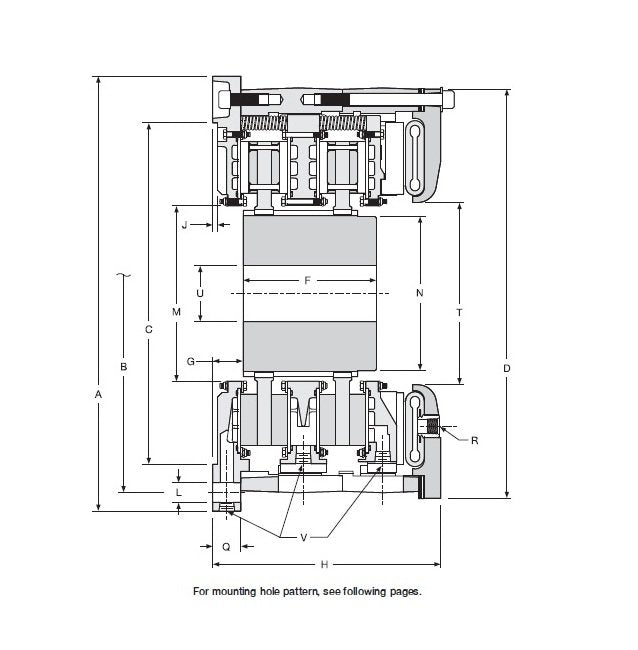

Specifications Bolt Hole Circle Diameter B
14.75 in | 374.65 mm
Specifications Bolt Hole Size L
21/32 in | 16.7 mm
Specifications Dimension D
14.75 in | 374.7 mm
Specifications Dimension F
9.12 in | 231.6 mm
Specifications Dimension G
0.75 in | 19.1 mm
Specifications Dimension H
12.81 in | 325.4 mm
Specifications Dimension J
0.25 in | 6.4 mm
Specifications Dimension M
5.38 in | 136.7 mm
Specifications Dimension N
4.63 in | 117.6 mm
Specifications Dimension Q
1.13 in | 28.7 mm
Specifications Dimension T
5.25 in | 133.4 mm
Specifications Disc Gear Inertia
6 lb·ft² | 0.25 kg·m²
Specifications Disc Gear Weight
84 lb | 38.1 kg
Specifications Dynamic Torque Rating 100 Psi7 Bar
36000 lb.in | 4067 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
28800 lb.in | 3196 Nm
Specifications Heat Capacity For Parallel Water Hosing
158 hp | 118 kW
Specifications Heat Capacity For Series Water Hosing
105 hp | 78 kW
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Bore Size
3.00 in | 76 mm
Specifications Maximum U
3.00 in | 76.2 mm
Specifications Minimum U
1.00 in | 25.4 mm
Specifications Number Of Bolt Holes
4
Specifications Number Of Coolant Inlets Thread Size
4 - 1/2 NPT
Specifications Number Of Inlet Ports Thread Size
2- 1/2 NPT
Specifications Parallel Water Flow 0 Ethylene Glycol
15.8 gpm | 60 lpm
Specifications Parallel Water Flow 30 Ethylene Glycol
20.5 gpm | 78 lpm
Specifications Parallel Water Flow 50 Ethylene Glycol
20.5 gpm | 78 lpm
Specifications Pilot Diameter A
15.997/16.000 in | 406.32/406.40 mm
Specifications Pilot Diameter C
11.375/11.378 in | 288.93/289.00 mm
Specifications Total Brake Weight
314 lb | 142.4 kg
