Wichita Kopper Kool Tension Brakes - High Heat Capacity
$1,499.99
Quantity: 1
Claim Your Seller Account
Wichita Kopper Kool Tension Brakes - High Heat Capacity
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Kopper Kool Tension Brakes offer exceptional heat dissipation with their copper disc design, ideal for applications requiring accurate control and continuous slip action for web tensioning. These airtube disc Clutches and Brakes are liquid-cooled, featuring high thermal capacity and durable construction. With copper alloy wear plates, hub spline for perfect alignment, and reinforced neoprene air-tube, these tension brakes ensure long service life and reliable performance under demanding operational conditions.
Product Specifications
Design Features 0
New friction material lasts longer with less wear on mating copper.Copper alloy wear plates increase heat transfer.Hub spline provides perfect alignment of rotating discs.External air & water connections.Release springs ensure complete disengagement.High strength reinforced neoprene air-tube offers long service life.Optional long stroke air tube available on 18" or 24" size units to increase life and standard maintenance intervals.High thermal capacity.
Note 0
Maximum water jacket inlet pressure is 60 PSI. Brakes with as great as 50 % higher torque capacity is available upon request.For mounting, use socket head capscrews conforming to the ASTM-574-97a.
Specifications Actuation
Air Applied
Specifications Assembly Number
7-314-310-103-0

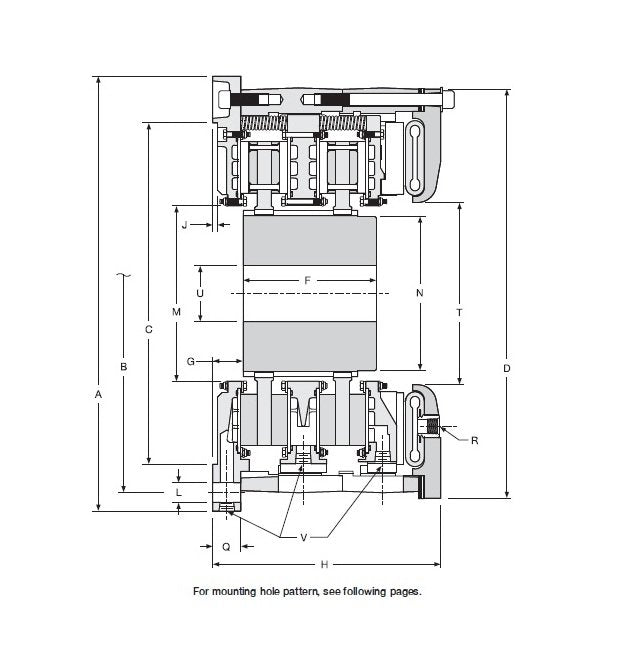

Specifications Bolt Hole Circle Diameter B
17.500 in | 444.50 mm
Specifications Bolt Hole Size L
21/32 in | 16.7 mm
Specifications Dimension D
17.50 in | 444.5 mm
Specifications Dimension F
9.13 in | 231.9 mm
Specifications Dimension G
1.69 in | 42.9 mm
Specifications Dimension H
14.13 in | 358.9 mm
Specifications Dimension J
0.25 in | 6.4 mm
Specifications Dimension M
7.38 in | 187.5 mm
Specifications Dimension N
6.50 in | 165.1 mm
Specifications Dimension Q
1.50 in | 38.1 mm
Specifications Dimension T
7.00 in | 177.8 mm
Specifications Disc Gear Inertia
16 lb·ft² | 0.67 kg·m²
Specifications Disc Gear Weight
120 lb | 54 kg
Specifications Dynamic Torque Rating 100 Psi7 Bar
63000 lb.in | 7118 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
50400 lb.in | 5593 Nm
Specifications Heat Capacity For Parallel Water Hosing
225 hp | 168 kW
Specifications Heat Capacity For Series Water Hosing
150 hp | 112 kW
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Bore Size
4.38 in | 111 mm
Specifications Maximum Lining Wear
0.5 in | 1.3 cm | 60 in³ | 1.0 dm³
Specifications Maximum U
4.38 in | 111.3 mm
Specifications Minimum U
1.38 in | 35.1 mm
Specifications Number Of Bolt Holes
6
Specifications Number Of Coolant Inlets Thread Size
4 - 1/2 NPT
Specifications Number Of Inlet Ports Thread Size
2- 1/2 NPT
Specifications Parallel Water Flow 0 Ethylene Glycol
22.5 gpm | 84 lpm
Specifications Parallel Water Flow 30 Ethylene Glycol
29 gpm | 111 lpm
Specifications Parallel Water Flow 50 Ethylene Glycol
36 gpm | 135 lpm
Specifications Pilot Diameter A
18.747/18.750 in | 476.17/476.25 mm
Specifications Pilot Diameter C
14.375/14.378 in | 412.75/412.83 mm
Specifications Pressure Drop Series Flow With 0 Ethylene Glycol
28 psi | 1.93 bar
Specifications Pressure Drop Series Flow With 30 Ethylene Glycol
48 psi | 3.31 bar
Specifications Total Brake Weight
470 lb | 213.2 kg
Specifications Water Volume
60 in³ | 1 dm³
