High heat dissipation Wichita Kopper Kool Tension Brakes for precise control and constant slip action. Optimal web tensioning.
Regular price
$2,750.00
Regular price
Sale price
$2,750.00
Unit price
per
Initiate Order
Wichita Kopper Kool Tension Brakes with High Heat Capacity
$2,750.00
Quantity: 1
Claim Your Seller Account
Wichita Kopper Kool Tension Brakes with High Heat Capacity
$2,750.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Kopper Kool Tension Brakes feature a sophisticated copper disc design that excels in high heat dissipation, ensuring optimal performance in demanding applications. These liquid-cooled brakes boast a series of alternating discs that connect the inner and outer drive members, enabling precise control through pneumatic expansion. Equipped with copper alloy wear plates for enhanced heat transfer, reinforced neoprene air-tube for durability, and optional long stroke air tube for extended service life, these brakes offer exceptional thermal capacity and reliable web tensioning.
Product Specifications
Design Features 0
New friction material lasts longer with less wear on mating copper.Copper alloy wear plates increase heat transfer.Hub spline provides perfect alignment of rotating discs.External air & water connections.Release springs ensure complete disengagement.High strength reinforced neoprene air-tube offers long service life.Optional long stroke air tube available on 18" or 24" size units to increase life and standard maintenance intervals.High thermal capacity.
Note 0
Maximum water jacket inlet pressure is 60 PSI. Brakes with as great as 50 % higher torque capacity is available upon request.For mounting, use socket head capscrews conforming to the ASTM-574-97a.
Specifications Actuation
Air Applied
Specifications Assembly Number
7-316-210-108-0

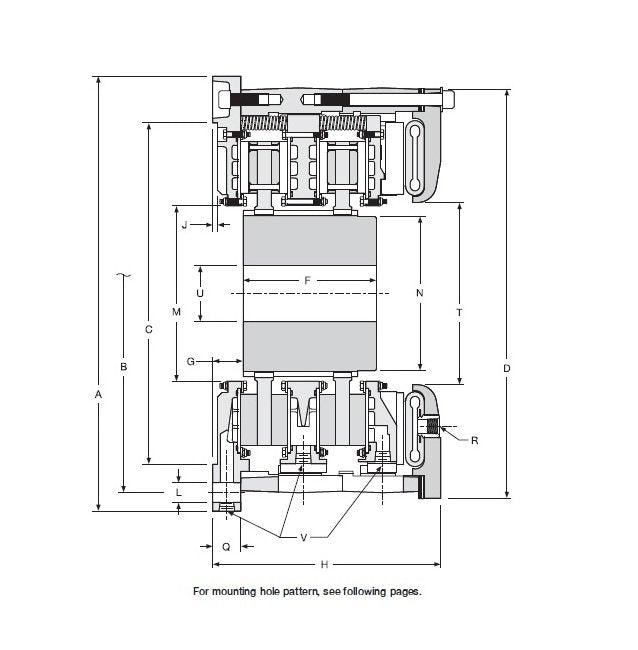

Specifications Bolt Hole Circle Diameter B
20.000 in | 508.00 mm
Specifications Bolt Hole Size L
21/32 in | 16.7 mm
Specifications Dimension D
20.00 in | 508 mm
Specifications Dimension F
7.00 in | 177.8 mm
Specifications Dimension G
1.25 in | 31.8 mm
Specifications Dimension H
11.50 in | 292.1 mm
Specifications Dimension J
0.25 in | 6.4 mm
Specifications Dimension M
8.62 in | 218.9 mm
Specifications Dimension N
7.50 in | 190.5 mm
Specifications Dimension Q
1.50 in | 38.1 mm
Specifications Dimension T
8.38 in | 212.9 mm
Specifications Disc Gear Inertia
25 lb·ft² | 1.07 kg·m²
Specifications Disc Gear Weight
143 lb | 65 kg
Specifications Dynamic Torque Rating 100 Psi7 Bar
64000 lb.in | 7231 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
51200 lb.in | 5681 Nm
Specifications Heat Capacity For Parallel Water Hosing
195 hp | 145 kW
Specifications Heat Capacity For Series Water Hosing
130 hp | 97 kW
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Bore Size
4.75 in | 121 mm
Specifications Maximum U
4.75 in | 120.7 mm
Specifications Minimum U
1.38 in | 35.1 mm
Specifications Number Of Bolt Holes
10
Specifications Number Of Coolant Inlets Thread Size
3 - 1/2 NPT
Specifications Number Of Inlet Ports Thread Size
2- 1/2 NPT
Specifications Parallel Water Flow 0 Ethylene Glycol
19.5 gpm | 74 lpm
Specifications Parallel Water Flow 30 Ethylene Glycol
25.4 gpm | 96 lpm
Specifications Parallel Water Flow 50 Ethylene Glycol
29 gpm | 111 lpm
Specifications Pilot Diameter A
21.245/21.248 in | 539.62/539.70 mm
Specifications Pilot Diameter C
16.253/16.250 in | 412.83/412.75 mm
Specifications Total Brake Weight
650 lb | 295 kg
