The Wichita Low Inertia Air Tube Disc Brakes offer a superior combination of disc clutch features and direct air engagement advantages. Featuring direct axial pressure application through compressed air in a specialized full-circle tube, these brakes deliver exceptional performance and reliability. With a dynamic torque rating of 1600 lb·in at 80 psi and 2000 lb·in at 100 psi, maximum RPM of 5250, and weighing only 14.0 lb, these brakes ensure smooth operation and durability. Manufactured by Wichita Clutch, these brakes are ideal for applications requiring precise and efficient braking mechanisms.
Product Specifications
Note 0

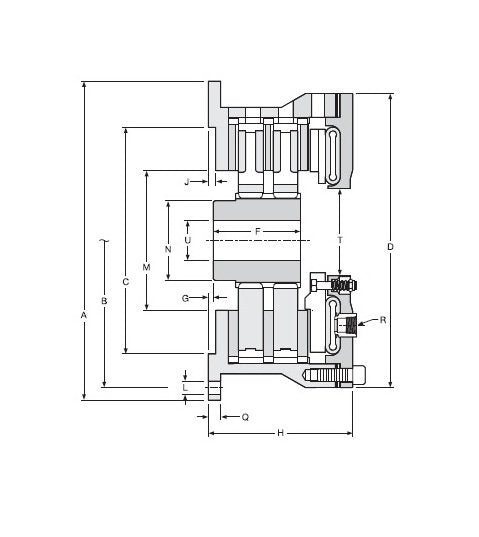

Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
7-004-200-801-0
Specifications Dynamic Torque Rating 100 Psi7 Bar
2000 lb·in | 225 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
1600 lb·in | 90 Nm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
1.00 in | 25 mm
Specifications Maximum Rpm High Speed Airtube
5250 rpm
Specifications Maximum Rpm Standard Airtube
5250 rpm
Specifications Total Brake Weight
14.0 lb | 6 kg
Specifications Weight Hub Center Plate
3.88 lb | 1.8 kg
Specifications Wr2jmr2 Hub Center Plate
0.04 lb·ft² | 0.002 kg·m²
