Wichita Low Inertia Air Tube Disc Brakes
Wichita Low Inertia Air Tube Disc Brakes
SKU:CLU-3485bc
High-performance Low Inertia Air Tube Disc Brakes by Wichita, with dynamic torque up to 75676 lb·in, ideal for precision applications.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Wichita Low Inertia Air Tube Disc Brakes
$5,899.99
Quantity: 1
Claim Your Seller Account
Wichita Low Inertia Air Tube Disc Brakes
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Low Inertia Air Tube Disc Brakes excel in combining the best features of disc clutches with direct air engagement. With a dynamic torque rating up to 75676 lb·in, these brakes offer reliable and efficient performance. Designed with maximum bore size of 4.00 in, maximum air pressure of 130 psi, and a total weight of 326 lb, these brakes ensure high durability and precision. Ideal for applications requiring up to 2150 rpm and compliant with industry standards, these brakes are a top choice for smooth and trouble-free operation.
Product Specifications
Note 0

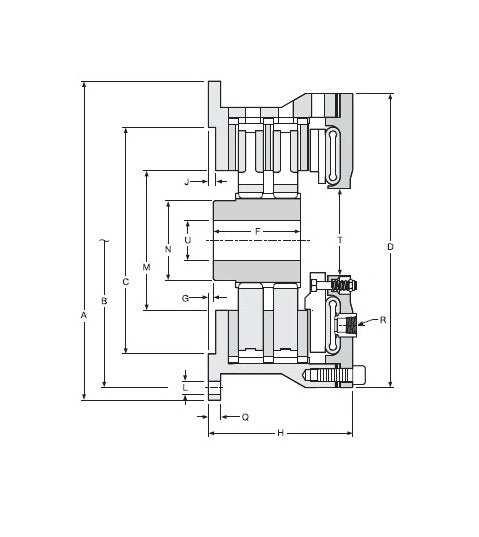

Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
7-016-200-100-0
Specifications Bolt Hole Diameter B
20.000 in | 508.00 mm
Specifications Dimension A
21.25 in | 539.8 mm
Specifications Dimension C
16.253/16.250 in | 412.75/412.83 mm
Specifications Dimension D
20.00 in | 508 mm
Specifications Dimension F
4.75 in | 120.7 mm
Specifications Dimension G
0.38 in | 9.7 mm
Specifications Dimension H
8.25 in | 209.6 mm
Specifications Dimension J
0.38 in | 9.7 mm
Specifications Dimension L
21/32 in | 16.7 mm
Specifications Dimension M
10.50 in | 266.7 mm
Specifications Dimension N
6.00 in | 152.4 mm
Specifications Dimension Q
0.63 in | 16.0 mm
Specifications Dimension R Number Size
2 - 1/2 NPT
Specifications Dimension T
6.13 in
Specifications Dynamic Torque Rating 100 Psi7 Bar
75676 lb·in | 8550 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
60541 lb·in | 6720 Nm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
4.00 in | 102 mm
Specifications Maximum Rpm High Speed Airtube
2150 rpm
Specifications Maximum Rpm Standard Airtube
1430 rpm
Specifications Maximum U
4.00 in | 101.6 mm
Specifications Minimum U
1.38 in | 35.1 mm
Specifications Number Of Mounting Holes L
12
Specifications Total Brake Weight
326 lb | 148 kg
Specifications Weight Hub Center Plate
106 lb | 48.1 kg
Specifications Wr2jmr2 Hub Center Plate
19.6 lb·ft² | 0.826 kg·m²
