Wichita Low Inertia Air Tube Disc Brakes
$5,699.99
Quantity: 1
Claim Your Seller Account
Wichita Low Inertia Air Tube Disc Brakes
$5,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Low Inertia Air Tube Disc Brakes offer the perfect synthesis of disc type clutch features and direct air engagement advantages. With dynamic torque ratings of up to 55250 lb·in, a maximum bore size of 3.50 inches, and a robust design by Wichita Clutch, these brakes ensure reliable and efficient braking performance in high-speed applications. The direct axial pressure application system, using compressed air in a full-circle tube, guarantees simple operation and minimal maintenance, making these brakes ideal for demanding industrial environments.
Product Specifications
Note 0

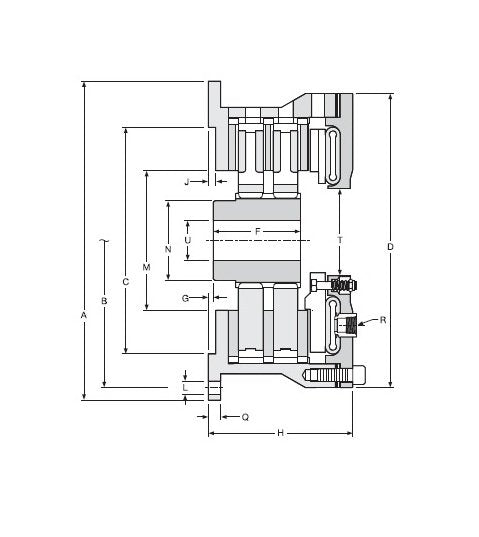

Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
7-014-200-101-0
Specifications Bolt Hole Diameter B
17.500 in | 444.50 mm
Specifications Dimension A
18.75 in | 476.3 mm
Specifications Dimension C
14.378/14.375 in | 365.20/365.13 mm
Specifications Dimension D
17.50 in | 444.5 mm
Specifications Dimension F
4.50 in | 114.3 mm
Specifications Dimension G
0.38 in | 9.7 mm
Specifications Dimension H
8.00 in | 203.2 mm
Specifications Dimension J
0.38 in | 9.7 mm
Specifications Dimension L
21/32 in | 16.7 mm
Specifications Dimension M
9.44 in | 239.8 mm
Specifications Dimension N
5.50 in | 139.7 mm
Specifications Dimension Q
0.63 in | 16.0 mm
Specifications Dimension R Number Size
2 - 1/2 NPT
Specifications Dimension T
5.06 in
Specifications Dynamic Torque Rating 100 Psi7 Bar
55250 lb·in | 6200 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
44200 lb·in | 4870 Nm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
3.50 in | 89 mm
Specifications Maximum Rpm High Speed Airtube
2450 rpm
Specifications Maximum Rpm Standard Airtube
1640 rpm
Specifications Maximum U
3.50 in | 88.9 mm
Specifications Minimum U
1.38 in | 35.1 mm
Specifications Number Of Mounting Holes L
8
Specifications Total Brake Weight
233 lb | 106 kg
Specifications Weight Hub Center Plate
77 lb | 34.9 kg
Specifications Wr2jmr2 Hub Center Plate
11.0 lb·ft² | 0.464 kg·m²
