Wichita Low Inertia Air Tube Disc Brakes
$5,899.00
Quantity: 1
Claim Your Seller Account
Wichita Low Inertia Air Tube Disc Brakes
$5,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Low Inertia Air Tube Disc Brakes offer a synergistic blend of disc clutch superiority and direct air engagement efficiency. Utilizing axial pressure via compressed air in a full-circle tube, these brakes deliver exceptional dynamic torque ratings at various air pressures. With a durable construction and maximum RPM performance, these brakes provide reliable and robust braking solutions ideal for industrial applications.
Product Specifications
Note 0

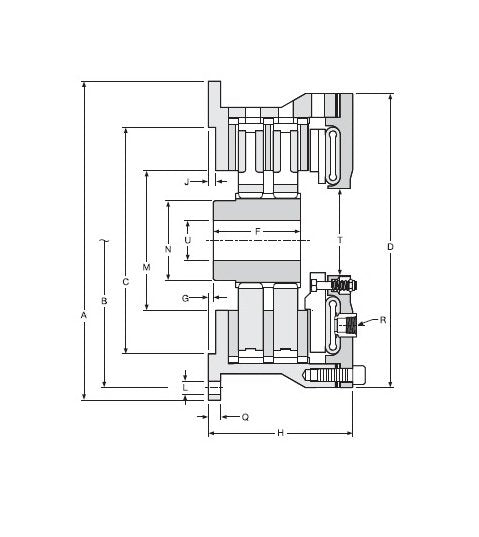

Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
7-016-300-100-0
Specifications Bolt Hole Diameter B
20.000 in | 508.00 mm
Specifications Dimension A
21.25 in | 539.8 mm
Specifications Dimension C
16.250/16.253 in | 412.75/412.83 mm
Specifications Dimension D
20.00 in | 508 mm
Specifications Dimension F
6.63 in | 168.4 mm
Specifications Dimension G
0.38 in | 9.7 mm
Specifications Dimension H
10.19 in | 258.8 mm
Specifications Dimension J
0.38 in | 9.7 mm
Specifications Dimension L
21/32 in | 16.7 mm
Specifications Dimension M
10.50 in | 266.7 mm
Specifications Dimension N
6.00 in | 152.4 mm
Specifications Dimension Q
0.63 in | 16.0 mm
Specifications Dimension R Number Size
2 - 1/2 NPT
Specifications Dimension T
6.13 in
Specifications Dynamic Torque Rating 100 Psi7 Bar
113514 lb·in | 12825 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
90811 lb·in | 10080 Nm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
4.00 in | 102 mm
Specifications Maximum Rpm High Speed Airtube
2150 rpm
Specifications Maximum Rpm Standard Airtube
1430 rpm
Specifications Maximum U
4.00 in | 101.6 mm
Specifications Minimum U
1.38 in | 35.1 mm
Specifications Number Of Mounting Holes L
12
Specifications Total Brake Weight
358 lb | 162 kg
Specifications Weight Hub Center Plate
151 lb | 68.5 kg
Specifications Wr2jmr2 Hub Center Plate
29.6 lb·ft² | 1.248 kg·m²
