Wichita Low Inertia Air Tube Disc Brakes
Wichita Low Inertia Air Tube Disc Brakes
SKU:CLU-0d4a64
Efficient Wichita Low Inertia Air Tube Disc Brakes with max 1000 lb·in torque, 5250 RPM, and 130 psi air pressure. Reliable and lightweight for industrial use.
Regular price
$1,450.00
Regular price
Sale price
$1,450.00
Unit price
per
Initiate Order
Wichita Low Inertia Air Tube Disc Brakes
$1,450.00
Quantity: 1
Claim Your Seller Account
Wichita Low Inertia Air Tube Disc Brakes
$1,450.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Low Inertia Air Tube Disc Brakes combine the superior features of disc-type clutches with the benefits of direct air engagement. Designed for efficiency and reliability, these brakes offer dynamic torque ratings of up to 1000 lb·in, max RPM of 5250, and a maximum air pressure of 130 psi. With a total weight of 11.0 lb, they are sturdy yet lightweight, suitable for various industrial applications. Manufactured by Wichita Clutch, these brakes ensure seamless operation through air application actuation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0

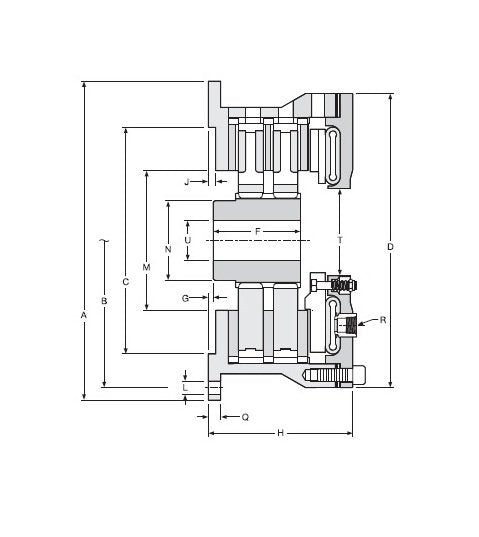

Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
7-004-100-803-0
Specifications Dynamic Torque Rating 100 Psi7 Bar
1000 lb·in | 113 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
800 lb·in | 90 Nm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
1.00 in | 25 mm
Specifications Maximum Rpm High Speed Airtube
5250 rpm
Specifications Maximum Rpm Standard Airtube
5250 rpm
Specifications Total Brake Weight
11.0 lb | 7 kg
Specifications Weight Hub Center Plate
1.54 lb | 0.7 kg
Specifications Wr2jmr2 Hub Center Plate
0.021 lb·ft² | 0.001 kg·m²
