The Wichita Low Inertia Air Tube Disc Brakes are expertly designed to merge the premium features of disc type clutches with the unparalleled advantages of direct air engagement. These brakes offer a seamless application of air pressure through axial pressure application, utilizing compressed air in a specially engineered full-circle tube. With a dynamic torque rating ranging from 523,200 lb·in to 654,000 lb·in, along with a maximum bore size of 7.25 inches, these brakes deliver exceptional performance and reliability. Designed by Wichita Clutch, these brakes are crafted for precision and durability, making them ideal for a wide range of industrial applications.
Product Specifications
Note 0
Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
7-031-200-316-0

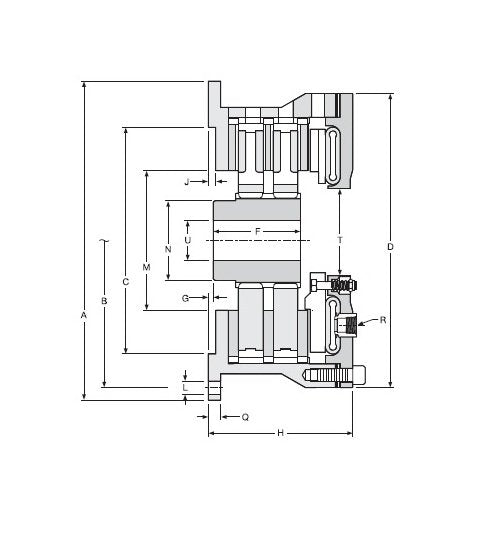

Specifications Bolt Hole Diameter B
35.500 in | 901.70 mm
Specifications Dimension A
37.00 in | 939.8 mm
Specifications Dimension C
30.375/30.378 in | 771.53/771.60 mm
Specifications Dimension D
34.75 in | 882.7 mm
Specifications Dimension F
7.13 in | 181.1 mm
Specifications Dimension G
1.88 in | 47.8 mm
Specifications Dimension H
11.81 in | 300.0 mm
Specifications Dimension J
0.25 in | 6.4 mm
Specifications Dimension L
25/32 in | 19.8 mm
Specifications Dimension M
19.25 in | 489 mm
Specifications Dimension N
10.00 in | 254 mm
Specifications Dimension Q
0.75 in | 19.1 mm
Specifications Dimension R Number Size
4 - 1/2 NPT
Specifications Dimension T
15.00 in
Specifications Dynamic Torque Rating 100 Psi7 Bar
654000 lb·in | 75420 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
523200 lb·in | 59260 Nm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
7.25 in | 184 mm
Specifications Maximum Rpm High Speed Airtube
1130 rpm
Specifications Maximum Rpm Standard Airtube
765 rpm
Specifications Maximum U
7.25 in | 184.2 mm
Specifications Minimum U
2.50 in | 63.5 mm
Specifications Number Of Mounting Holes L
18
Specifications Total Brake Weight
1350 lb | 612 kg
Specifications Weight Hub Center Plate
546 lb | 247.7 kg
Specifications Wr2jmr2 Hub Center Plate
370 lb·ft² | 15.6 kg·m²
