Wichita Low Inertia Air Tube Disc Brakes
$3,875.99
Quantity: 1
Claim Your Seller Account
Wichita Low Inertia Air Tube Disc Brakes
$3,875.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Low Inertia Air Tube Disc Brakes combine the superior features of disc clutches with direct air engagement, offering a trouble-free application of air pressure through a special composition full-circle tube. With dynamic torque ratings up to 262078 lb·in, maximum RPM of 1650, and a durable construction, these brakes ensure reliable performance in demanding industrial environments. Manufactured by Wichita Clutch, these brakes meet stringent quality and performance standards, making them ideal for applications requiring precision and efficiency.
Product Specifications
Note 0

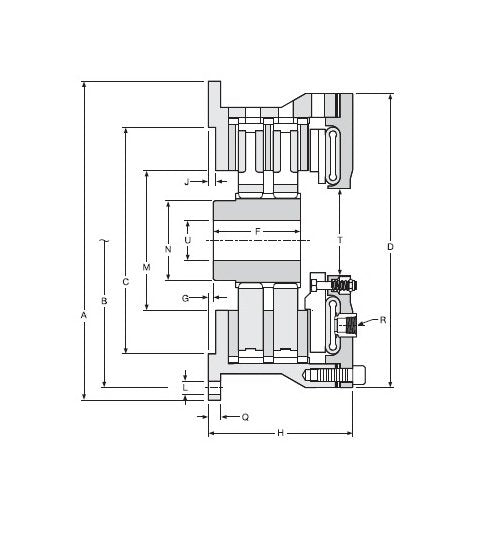

Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
7-021-300-100-0
Specifications Bolt Hole Diameter B
25.500 in | 647.70 mm
Specifications Dimension A
27.00 in | 685.8 mm
Specifications Dimension C
21.378/21.375 in | 543.00/542.93 mm
Specifications Dimension D
24.88 in | 632 mm
Specifications Dimension F
7.13 in | 181.1 mm
Specifications Dimension G
0.75 in | 19.1 mm
Specifications Dimension H
11.75 in | 298.5 mm
Specifications Dimension J
0.31 in | 7.9 mm
Specifications Dimension L
21/32 in | 16.7 mm
Specifications Dimension M
14.50 in | 368.3 mm
Specifications Dimension N
9.00 in | 228.6 mm
Specifications Dimension Q
0.75 in | 19.1 mm
Specifications Dimension R Number Size
3 - 1/2 NPT
Specifications Dimension T
9.25 in
Specifications Dynamic Torque Rating 100 Psi7 Bar
262078 lb·in | 29610 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
209662 lb·in | 23265 Nm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
6.00 in | 152 mm
Specifications Maximum Rpm High Speed Airtube
1650 rpm
Specifications Maximum Rpm Standard Airtube
1090 rpm
Specifications Maximum U
6.00 in | 152.4 mm
Specifications Minimum U
2.00 in | 50.8 mm
Specifications Number Of Mounting Holes L
12
Specifications Total Brake Weight
723 lb | 328 kg
Specifications Weight Hub Center Plate
312 lb | 141.5 kg
Specifications Wr2jmr2 Hub Center Plate
122 lb·ft² | 5.14 kg·m²
