The Wichita Low Inertia Air Tube Disc Brakes feature a unique design that combines the reliability of disc clutches with direct air engagement. With dynamic torque ratings of up to 47700 lb·in, maximum RPM of 3125, and a maximum bore size of 2.50 inches, these brakes offer high performance and durability. Manufactured by Wichita Clutch, these brakes are actuated by air pressure, providing a trouble-free operation. Consult factory for special assembly numbers and mounting instructions.
Product Specifications
Note 0

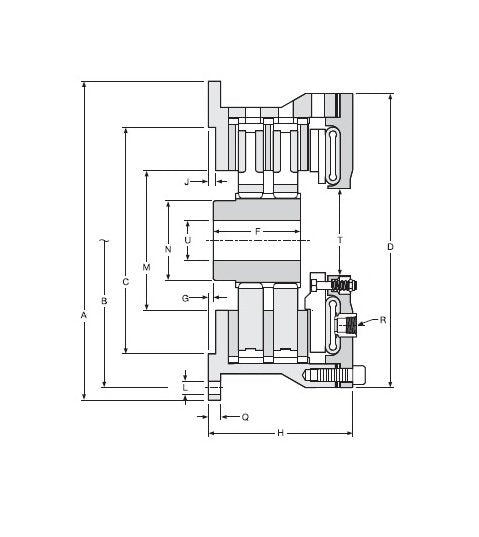

Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
7-011-300-100-0
Specifications Dynamic Torque Rating 100 Psi7 Bar
47700 lb·in | 5390 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
38160 lb·in | 4235 Nm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
2.50 in | 64 mm
Specifications Maximum Rpm High Speed Airtube
3125 rpm
Specifications Maximum Rpm Standard Airtube
2090 rpm
Specifications Total Brake Weight
208 lb | 94 kg
Specifications Weight Hub Center Plate
121 lb | 54.9 kg
Specifications Wr2jmr2 Hub Center Plate
7.00 lb·ft² | 0.295 kg·m²
