The Wichita Low Inertia Air Tube Disc Brakes combine the superior features of disc clutches with direct air engagement for efficient braking. With a dynamic torque rating of up to 82875 lb·in, maximum RPM of 2450 rpm, and exceptional WR2/J=mr2 of 16.7 lb·ft², these brakes offer high performance and reliability. Manufactured by Wichita Clutch, these air-actuated brakes ensure trouble-free operation and maximum safety. Consult factory for special assembly numbers and detailed mounting instructions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0

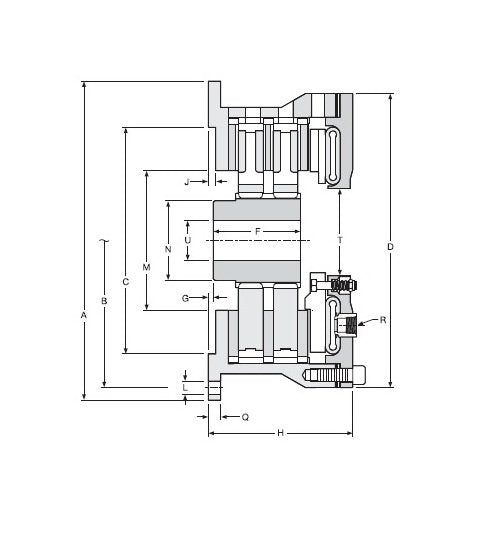

Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
7-014-300-102-0
Specifications Dynamic Torque Rating 100 Psi7 Bar
82875 lb·in | 9365 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
66300 lb·in | 7355 Nm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
3.50 in | 89 mm
Specifications Maximum Rpm High Speed Airtube
2450 rpm
Specifications Maximum Rpm Standard Airtube
1640 rpm
Specifications Total Brake Weight
290 lb | 132 kg
Specifications Weight Hub Center Plate
121 lb | 54.9 kg
Specifications Wr2jmr2 Hub Center Plate
16.7 lb·ft² | 0.704 kg·m²
