Wichita Low Inertia Air Tube Disc Clutch
$6,499.00
Quantity: 1
Claim Your Seller Account
Wichita Low Inertia Air Tube Disc Clutch
$6,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Low Inertia Air Tube Disc Clutch offers a superior combination of direct air engagement and disc clutch features. With a dynamic torque rating of up to 262078 lb·in and high-speed capabilities of 1650 rpm, this clutch provides reliable performance in demanding applications. Designed with a maximum bore size of 6.00 inches and a sturdy yet balanced construction, this clutch is ideal for high-torque industrial environments. For seamless operation, the air pressure application is efficiently transmitted through a special composition full-circle tube, ensuring trouble-free functionality.
Product Specifications
Note 0
Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)

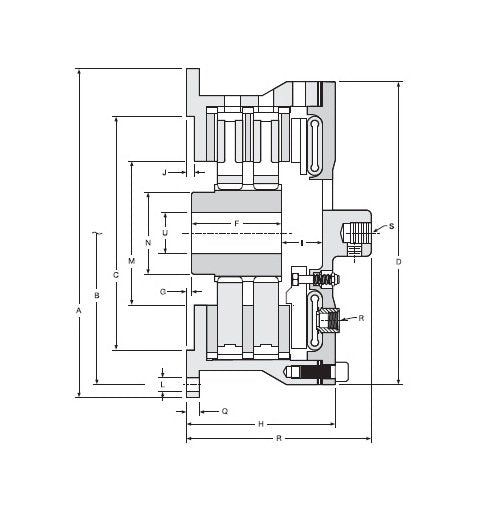

Specifications Actuation
Air Applied
Specifications Assembly Number
6-021-300-100-0
Specifications Balance Speed
650 rpm
Specifications Bolt Hole Diameter B
25.500 in | 647.70 mm
Specifications Dimension A
27.00 in | 685.8 mm
Specifications Dimension D
24.88 in | 632 mm
Specifications Dimension E
13.25 in | 336.6 mm
Specifications Dimension F
7.13 in | 181.1 mm
Specifications Dimension G
0.75 in | 19.1 mm
Specifications Dimension H
11.75 in | 298.5 mm
Specifications Dimension I
2.75 in | 69.9 mm
Specifications Dimension J
0.31 in | 7.9 mm
Specifications Dimension L
21/32 in | 16.7 mm
Specifications Dimension M
14.50 in | 368.3 mm
Specifications Dimension N
9.00 in | 228.6 mm
Specifications Dimension Q
0.75 in | 19.1 mm
Specifications Dimension R Number Size
3 - 1/2 NPT
Specifications Dimension S
1" - 14NF
Specifications Dynamic Torque Rating 100 Psi7 Bar
262078 lb·in | 29610 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
209662 lb·in | 23265 Nm
Specifications Exhaust Coefficients Operating Air Pressure At 75
2.5
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
6.00 in | 152 mm
Specifications Maximum Rpm High Speed Airtube
1650 rpm
Specifications Maximum Rpm Standard Airtube
900 rpm
Specifications Maximum U
6.00 in | 152.4 mm
Specifications Minimum U
2.00 in | 50.8 mm
Specifications Number Of Mounting Holes L
12
Specifications Pilot Diameter C
21.375/21.378 in | 542.93/543.00 mm
Specifications Total Clutch Inertia
450 lb·ft² | 18.97 kg·m²
Specifications Total Clutch Weight
730 lb | 331 kg
Specifications Weight Hub Center Plate
272 lb | 123.4 kg
Specifications Wr2jmr2 Hub Center Plate
92 lb·ft² | 3.88 kg·m²
